All aluminium awning. No painting required.
Protects windows from heat penetration.
Keeps your house temperature stable
DIY installation. Everything included
No rattle from loose slats in the wind
Clik'n'Fit® lightweight aluminium and Colorbond steel slatted window
hoods. They are an innovative, Australian-made product and the
perfect way to protect your windows. The horizontal slats provide
plenty of shade and privacy without completely blocking your
views. Standard Spacing between slats is 20mm.

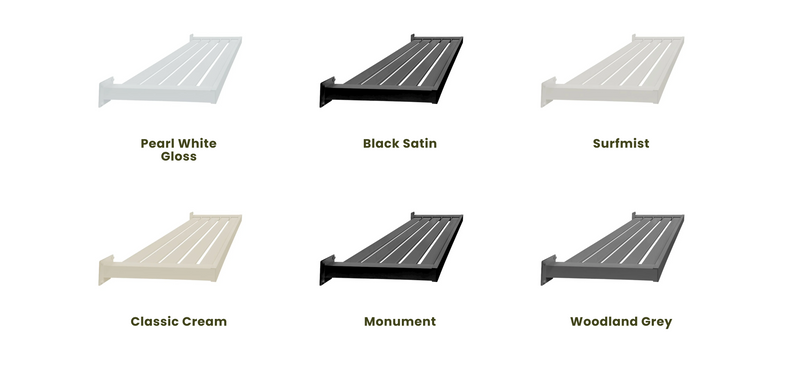

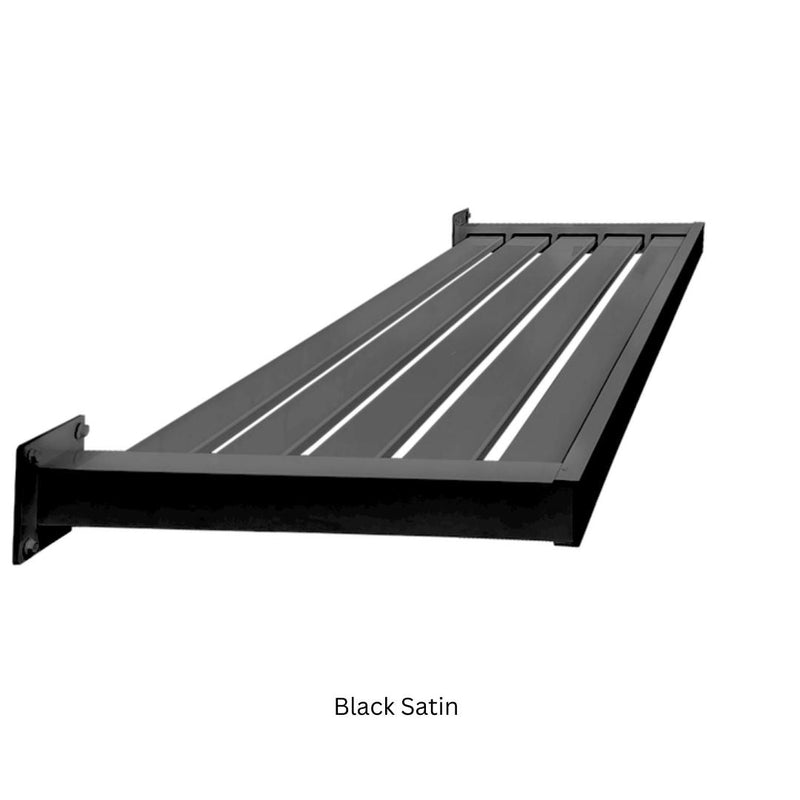

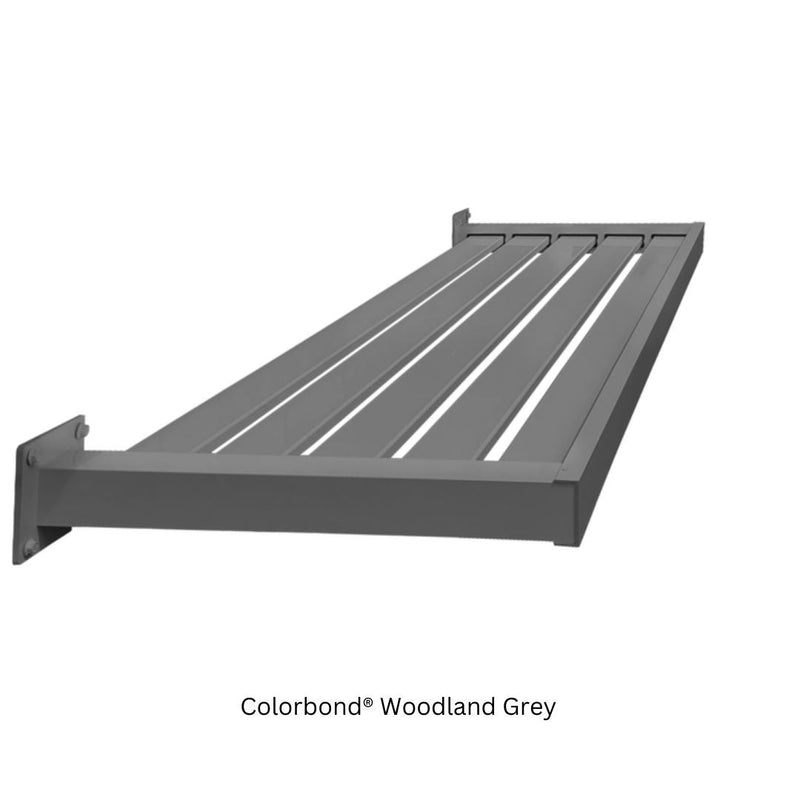

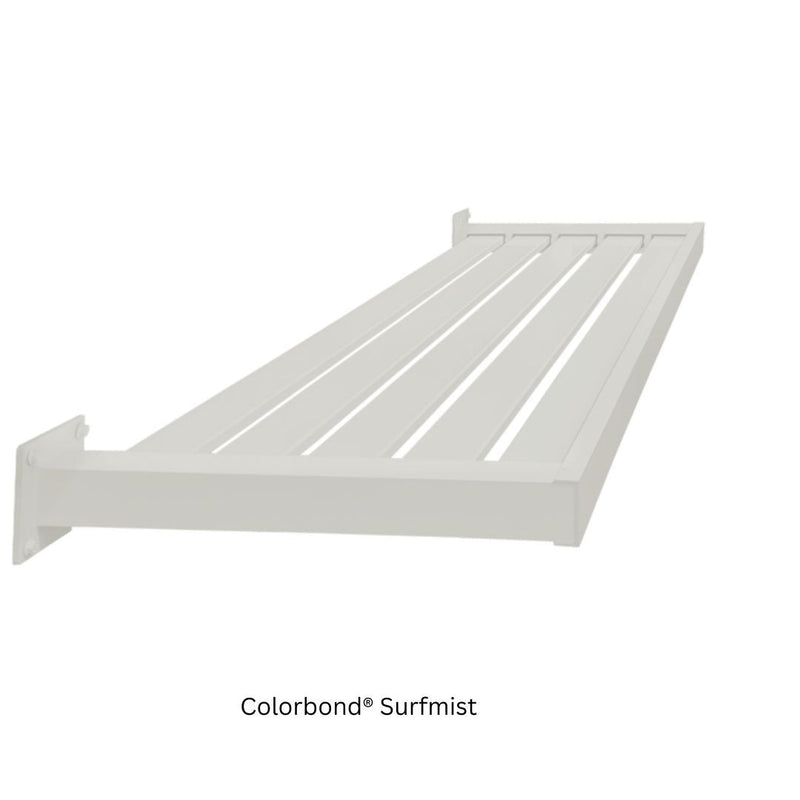

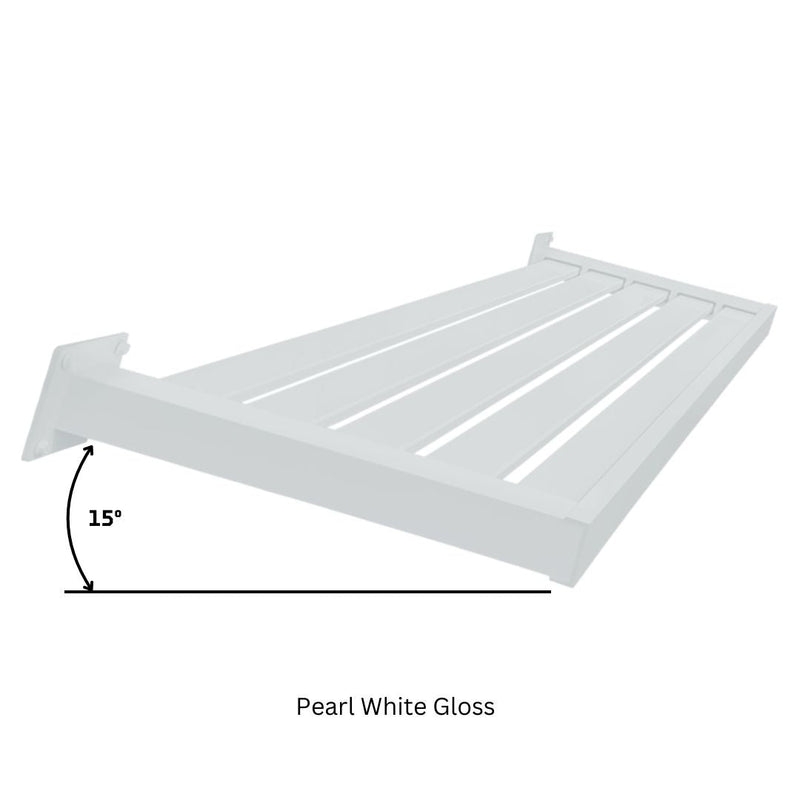

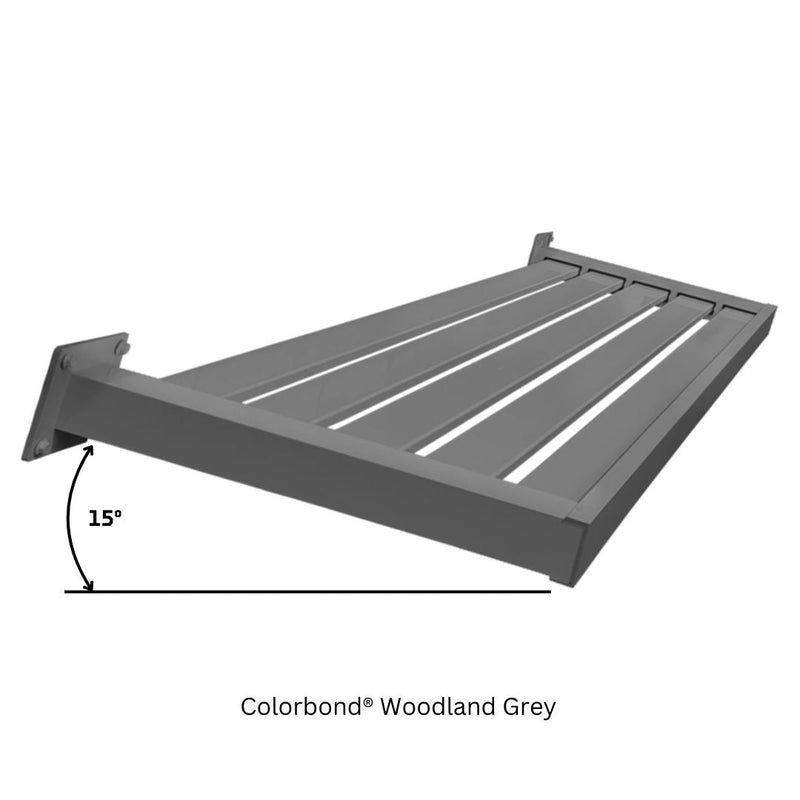

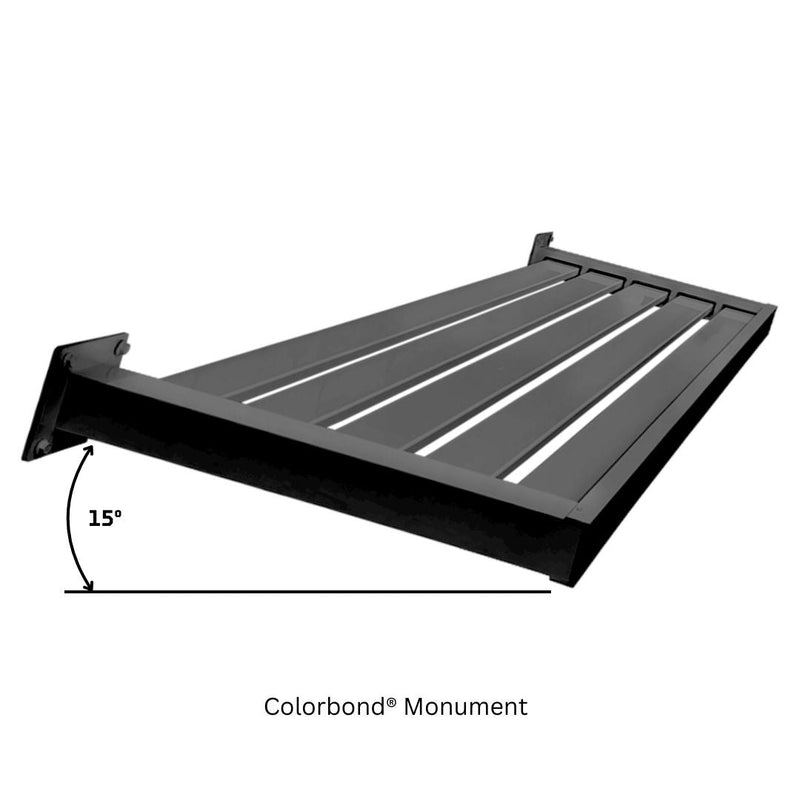

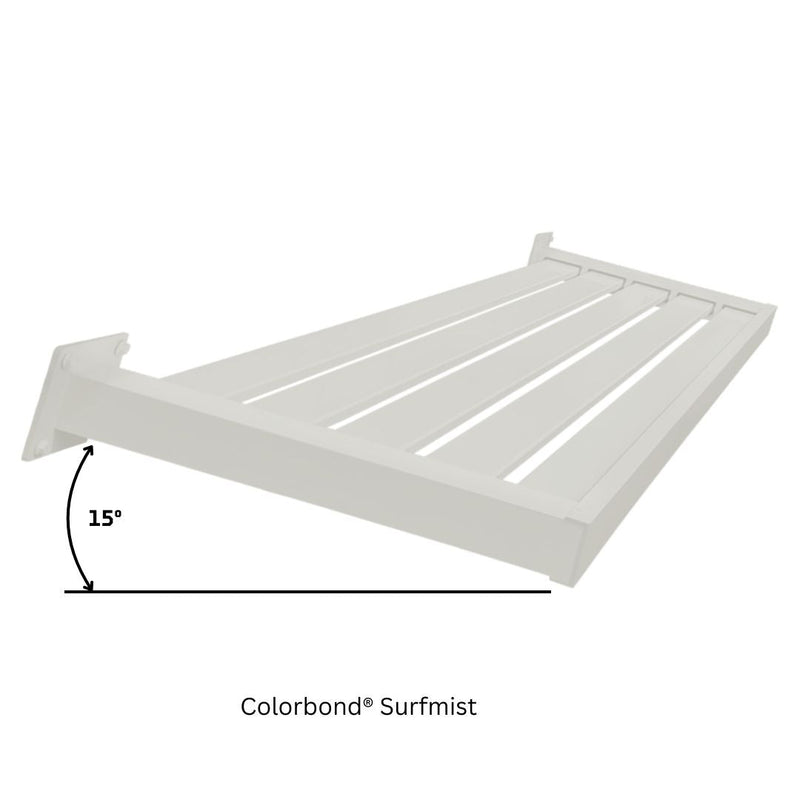

Choose your Colour
Other powdercoat colours can be ordered for an additional fee, just send an email to our team for a quote.

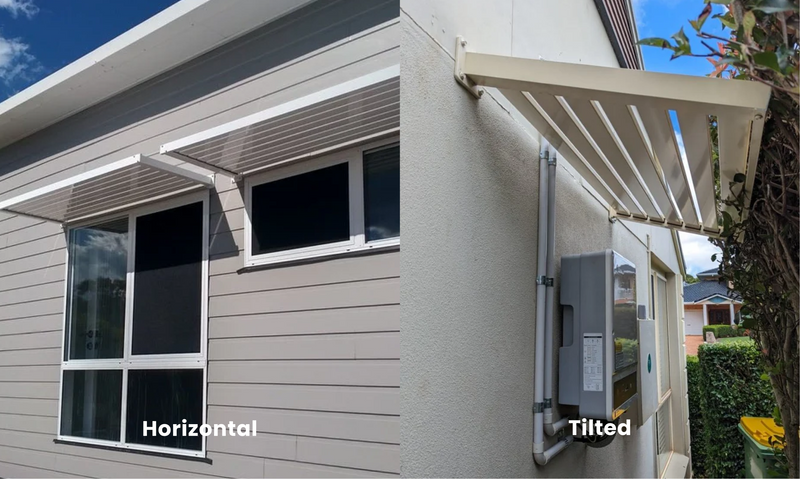

Choose your Awning Style
Other powdercoat colours can be ordered for an additional fee, just send an email to our team for a quote.

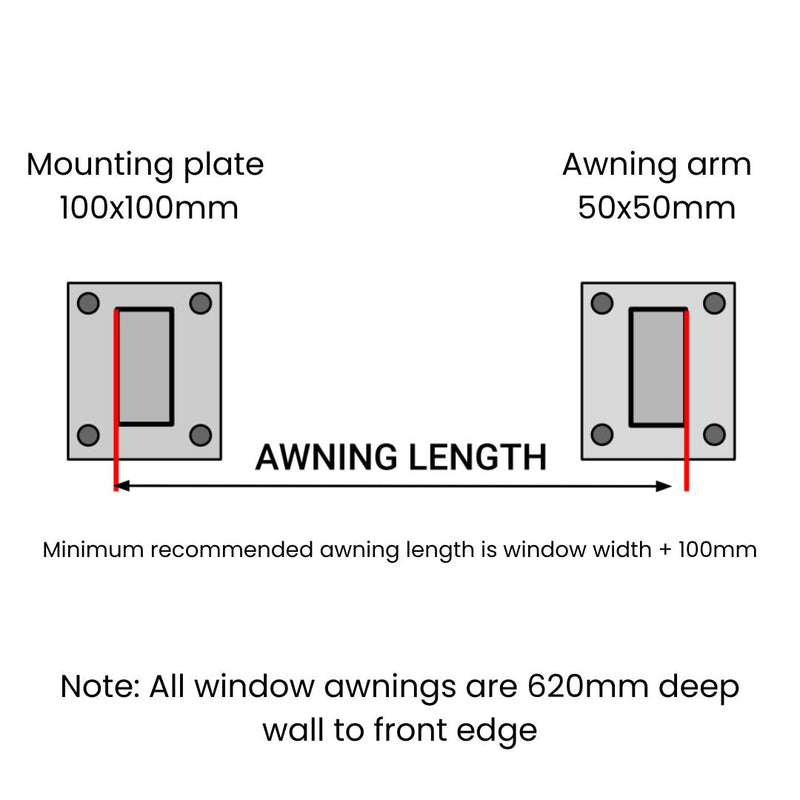

How to Measure Up
Identify which windows need awnings or hoods (north-and west-facing windows often need the most protection). Measure you window widths and note anything that could interfere when fixing an awning above them.
General rule of thumb is 15-45cm beyond the widow frame on either side. The more the better for window shading.
Perfect for Builders or DIY Projects
Panels click into the frame by hand, so all you need to do is assemble it and secure the brackets to the wall above your window. This means no messing around searching for extra bits and pieces from different suppliers, you get everything you need in the one package.
Excellent 5
All aluminium awning. No painting required.
Each slat awning is made from 6060 T5 Aluminium and finished with a thermoset powdercoating available in seven popular COLORBOND® colours. This makes every unit highly durable, weather-resistant, and low maintenance. They are also corrosion, flame, and termite resistant, and have been wind load tested to meet N3 standards.
For awnings wider than 2250mm, a centre bracket is included to split the slats into two sections. This design allows for easier installation, safer transport, and improved stability. To determine sizing, measure horizontally from the top corners of each window—this is where the brackets will be installed.
Protects windows from heat penetration.

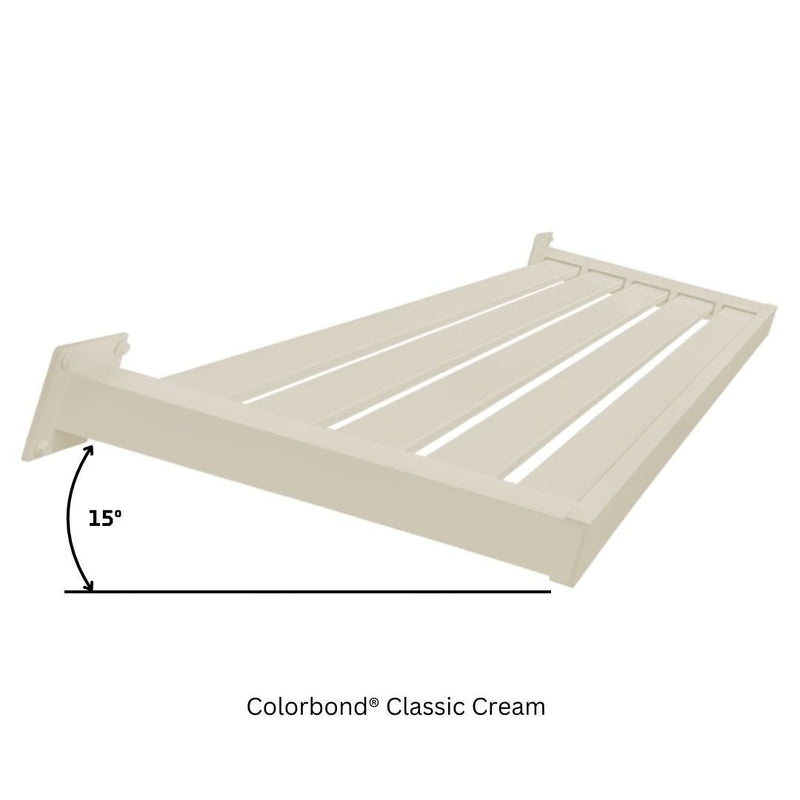

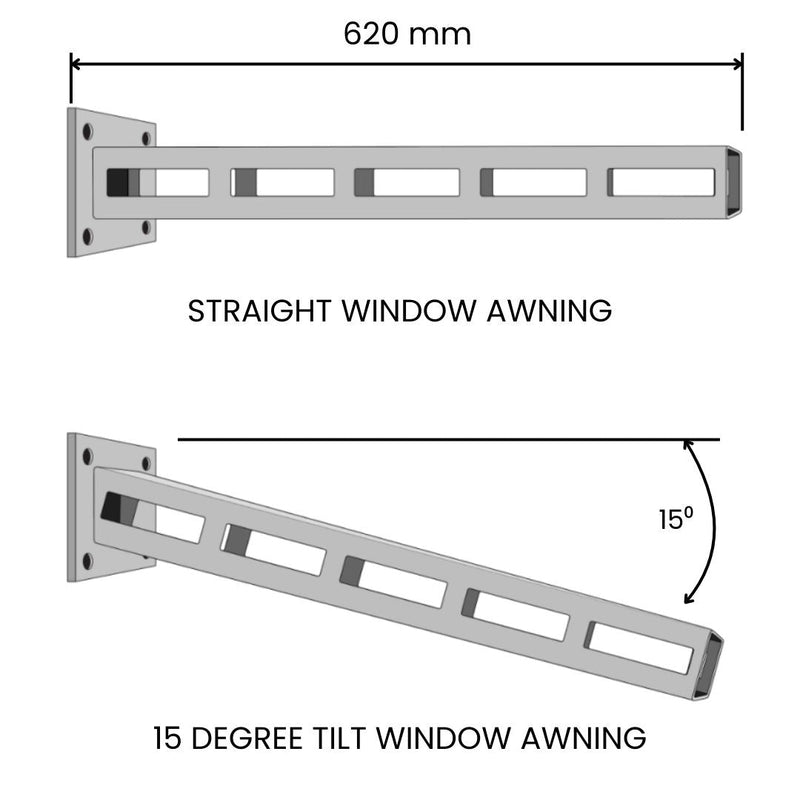

With a few of these added to your home, you'll reduce solar heat gain by up to 65% - exceeding BASIX's Thermal Comfort requirements, thereby helping to cut energy costs and lower your carbon footprint. If you've got some high rise neighbours click-and-fit window hoods also give that extra bit of privacy. You can even choose to have the whole system hang straight out or at a 15 degree tilt downwards.
Keeps your house temperature stable.
With a few of these added to your home, you'll reduce solar heat gain by up to 65% - exceeding BASIX's Thermal Comfort requirements, thereby helping to cut energy costs and lower your carbon footprint. If you've got some high rise neighbours click-and-fit window hoods also give that extra bit of privacy. You can even choose to have the whole system hang straight out or at a 15 degree tilt downwards.
DIY installation. Everything included
Perfect for a DIY project or self-install - the panels click into the frame by hand, so all you need to do is assemble it and secure the brackets to the wall above your window. This means no messing around searching for extra bits and pieces from different suppliers, you get everything you need in the one package.
No rattle from lose slats in the wind.
The Clik'n'Fit system means you don't have to drill and screw every slat. No stripped screws, no oversize holes and no rattle from lose slats in the wind.
Sizes larger than 2250mm wide include a centre bracket, so the slats are split into two sections for ease of installation and transportation as well as improved stability.

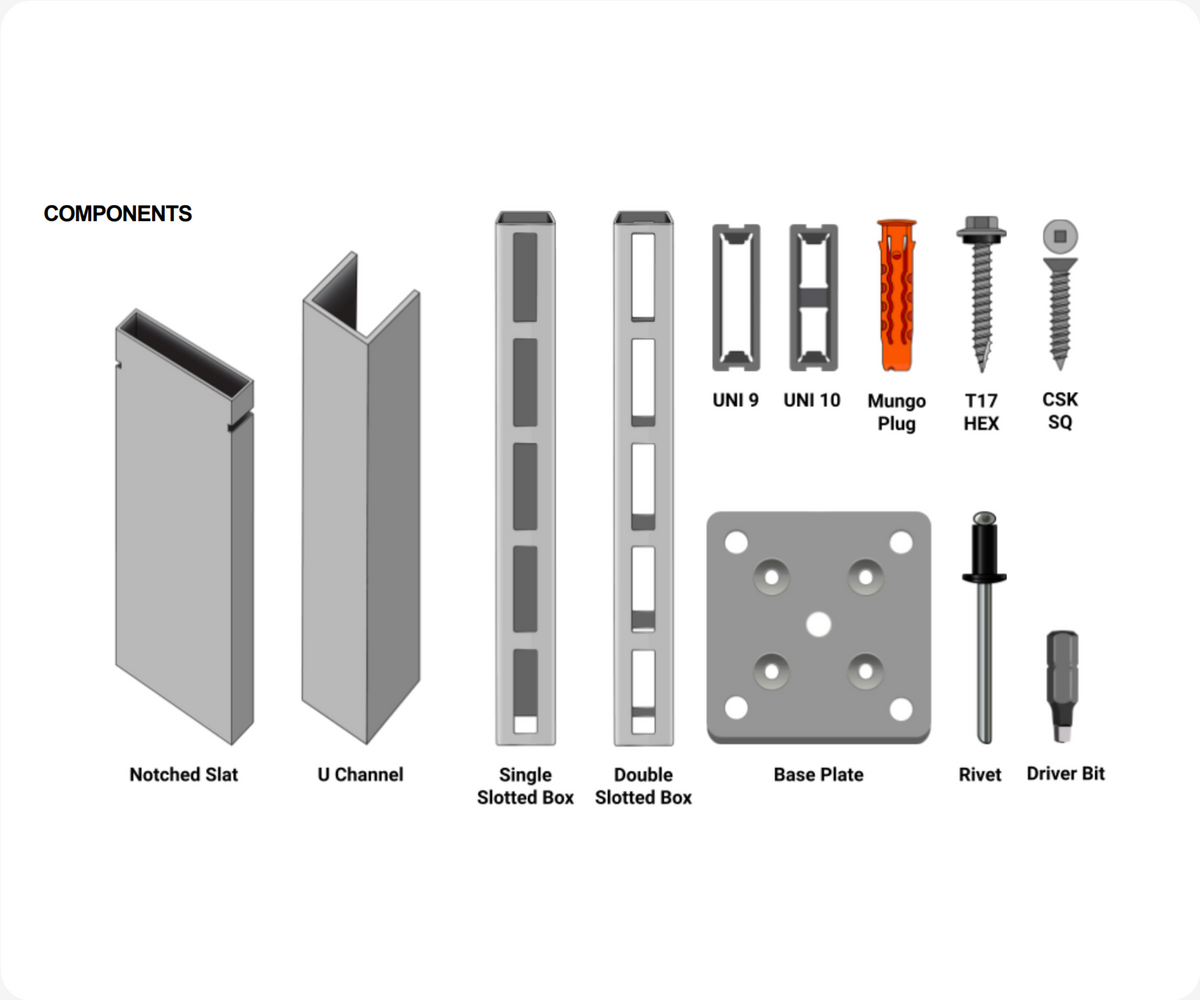

What’s in the Box
Clik’n’Fit® Awnings are a quick and easy to install modular system, suitable for DIY. Please follow the instructions to ensure your screen is installed securely and will look its best.

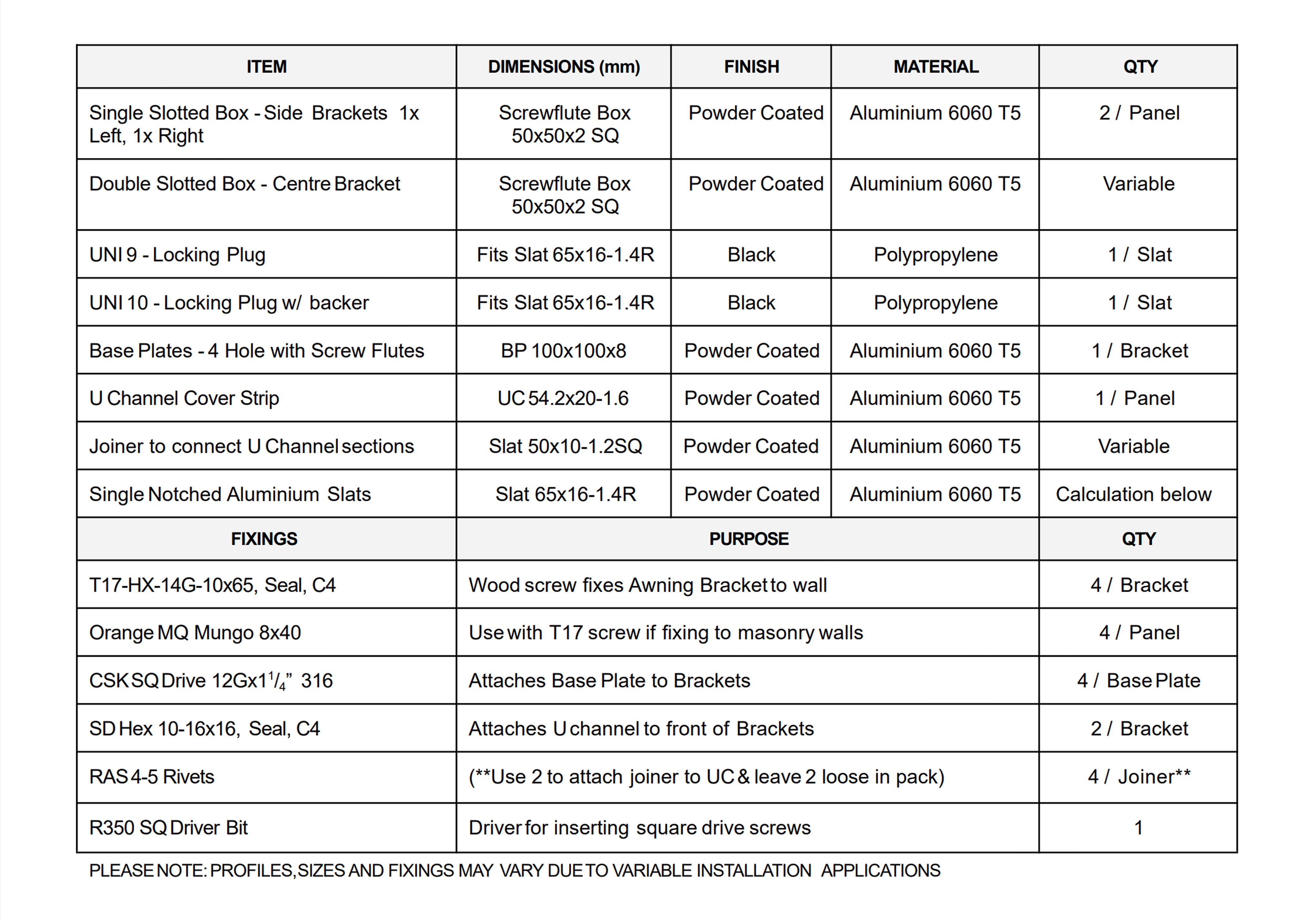

Components Included:
- Awning Bracket 50x50mm (single routing) including locking plugs (right angle from wall or 15 degree angle)
- U Channel & End Plugs
- Notched Slat (65x16x1.4) Flatpack (number based on height of screen)
- (For panels over 2000W) Centre Bracket 50x50mm (double sided routing) including locking plugs
- Fixings pack for masonry or timber; other materials, such as foam, require specialty fixings which are an additional cost.
Yes! Please keep in mind the maximum span between mounting brackets is 2000mm, but the total width can be over 5 metres and the maximum depth of bracket is 900mm (Distance off wall). We can also finish in any dulux or colorbond powdercoat colour for an additional cost.

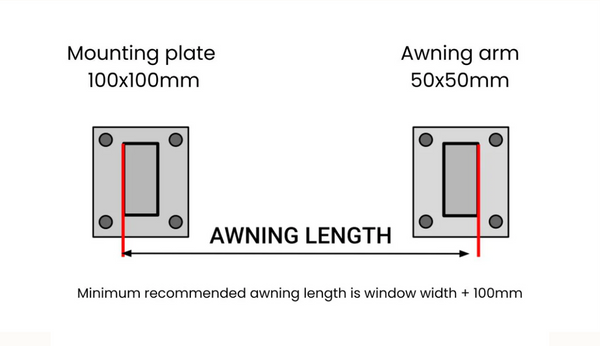

Take 150mm off the total distance of your selected size. This should be approximately the width of your window (or any other area you want covered). E.g.1950 is suitable for an 1800 wide window. Please see the PDF installation document above for more info.
Outside of bracket (aluminium box section which the slats go into). The wall fixing/base plate may be 25mm wider on each side.
That depends on the angle of the sun. All of our units have 65% heat block and the same gaps between slats, it is up to you to decide if an angled down awning is more relevant to your needs than a straight one. I have suggested to clients in the past to get a big piece of cardboard or such and put it above your window and see what casts the largest shadow.
