Atlantis 20mm Drainage Cell (Flo Cell)
Pricing is per square metre (1 Unit = 1m2) Shipped Australia Wide from Gold Coast warehouse
This ultra-compact drainage cell from Atlantis is deceptively light at just 550 grams a section, but can hold up to 90 tonnes with an unbelievable 90% void capacity for water flow. Irrigate behind retaining walls or vertical gardens, under turf on a rooftop garden or along the inner side of a raised garden bed.
Description
When you need a versatile drainage system that won’t fail this lightweight, interlocking deign that’s quick and easy to install has an environmental footprint almost as small as it’s cost.
For even your most ambitious landscaping plans you can rely on this innovative geo-composite cell, allowing you to create gardens in urban environments that were once thought too difficult. Whether your needs are commercial, residential or even industrial, this Australian made geo-composite that’s made from 85% recycled polypropylene can meet and even exceed your expectations.
Drainage Cell Benefits & Use Cases
The 20mm Atlantis Drainage Cell has a number of benefits and features that could make it perfect for your home or commercial project, including:
- High compressive strength – can withstand up to 90 tonnes per metre squared
- Protects waterproof membrane
- Lightweight – just 550 grams per section
- Simple to transport – comes in modular pieces (4 pieces per m2)
- Quick installation – sheets can be clipped and unclipped by hand
- Can be used in shot-crete application
- Compressive Strength: 90 t/m2
- Replaces gravel as primary back-fill material
- Can be arranged in any configuration or shape you require
- Flow Rate: 0.65 L/sqm @ 1% gradient
- Manufactured from 85% recycled polypropylene
This cost-effective water management solution can be used in a variety of ways, including:
- Retaining wall drainage
- Residential façade
- A sleek, modern privacy screen
- Vertical or horizontal drainage
- Road drainage cell for underneath driveways and paths
- Railway drainage cell

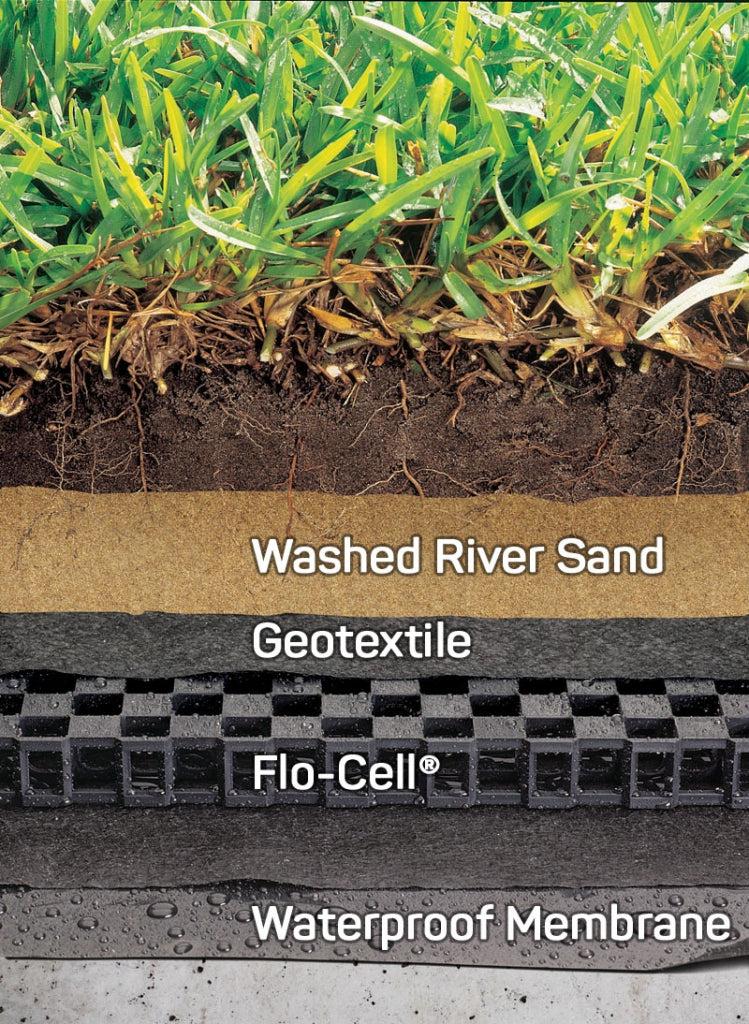

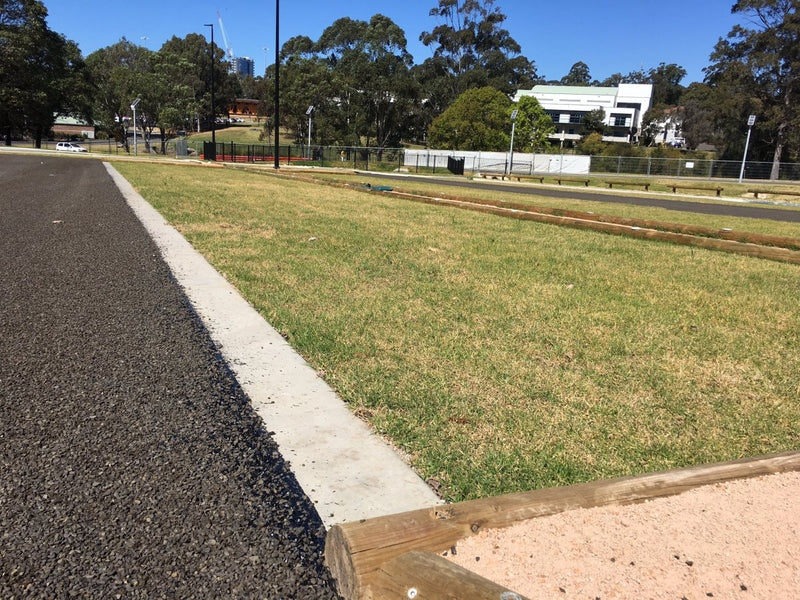

- Field drainage underneath turf

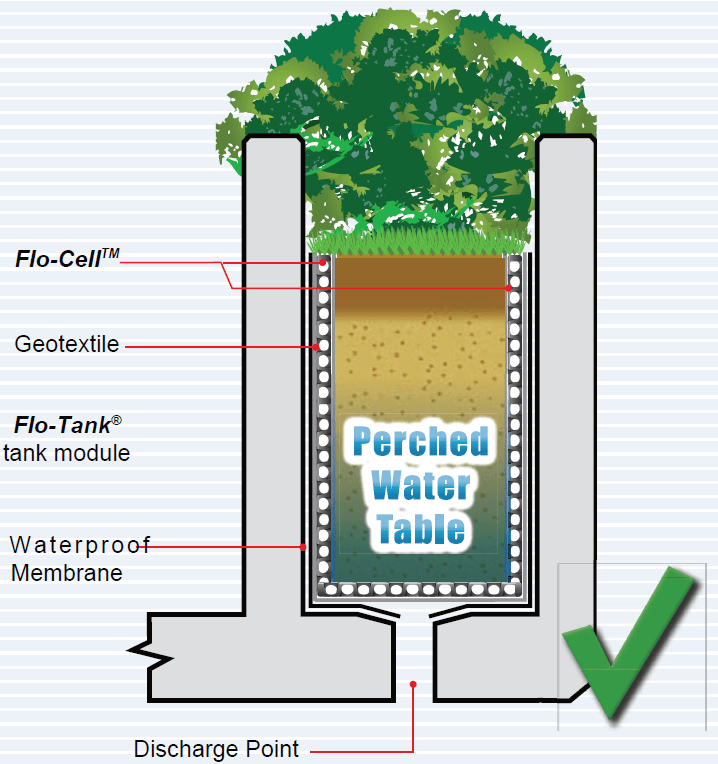

- Irrigation inside planter boxes and garden beds as drainage
- Underneath turf for an unforgettable rooftop garden
- Balcony drainage
- Void fill for all your construction needs
- Vertical gardens and living green wall systems

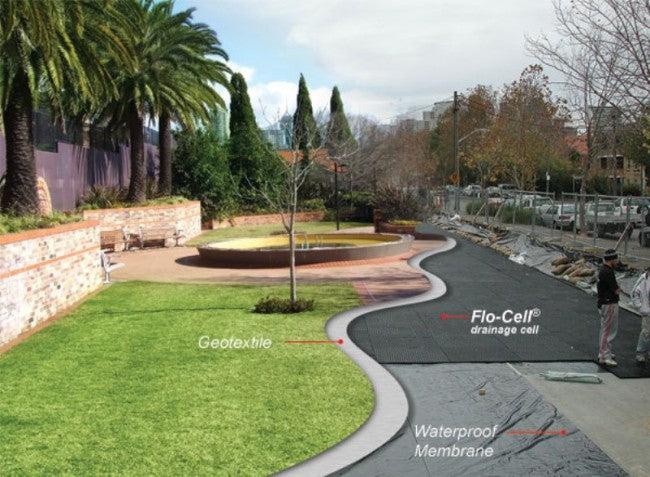

- Large-scale landscaping projects
Got a large project coming up? Feel free to get in touch with our friendly team at Eco Sustainable House with the required quantities of drainage cell and we'll get back to you shortly with a quote.
Specifications
Supplied: 20mm x 810mm x 1240mm (4 pieces @ 20mm x 406mm x 620mm)
