Atlantis Flo Pipe Strip Drainage
Distributed only from the Sydney Warehouse. 1-2 Week lead time ex Gold Coast.
Looking for a high-performance and eco friendly alternative to AG pipe or gravel drains? Made from 85% recycled polypropylene, the Atlantis Flo-Pipe offers superior performance in longitudinal sub soil drainage at a cost-effective price. Eco Sustainable House recommends these for applications where crush strength and weight are a factor.
Description

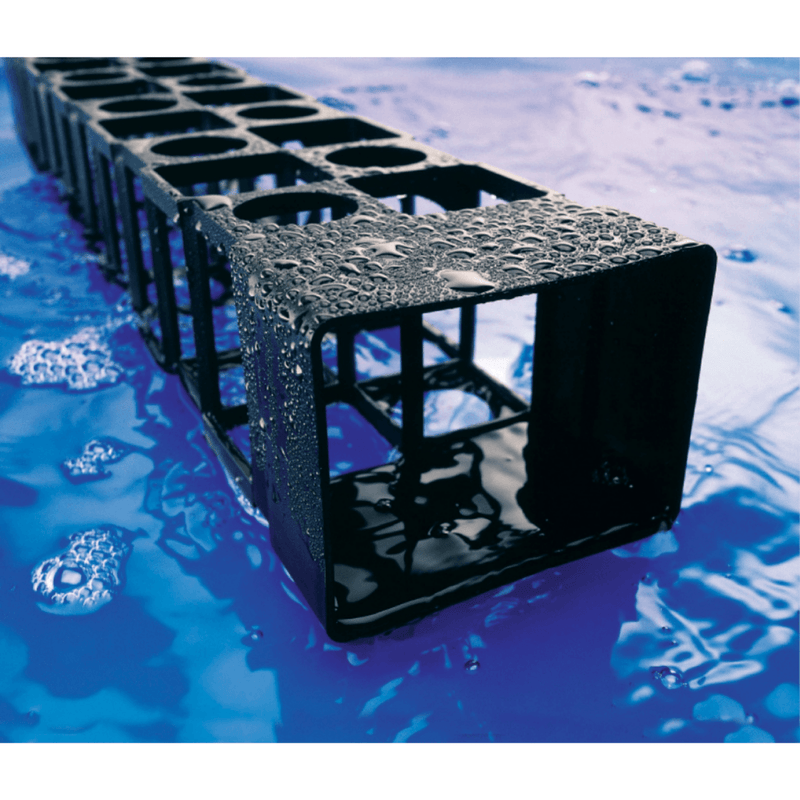

The modular, hollow design allows this system to be applied in long lengths or individual pieces. It features male and female connections at alternate ends for simple connection into one system. The Flo-Pipe also connects to standard downpipe adapters for conversion to round pipe.

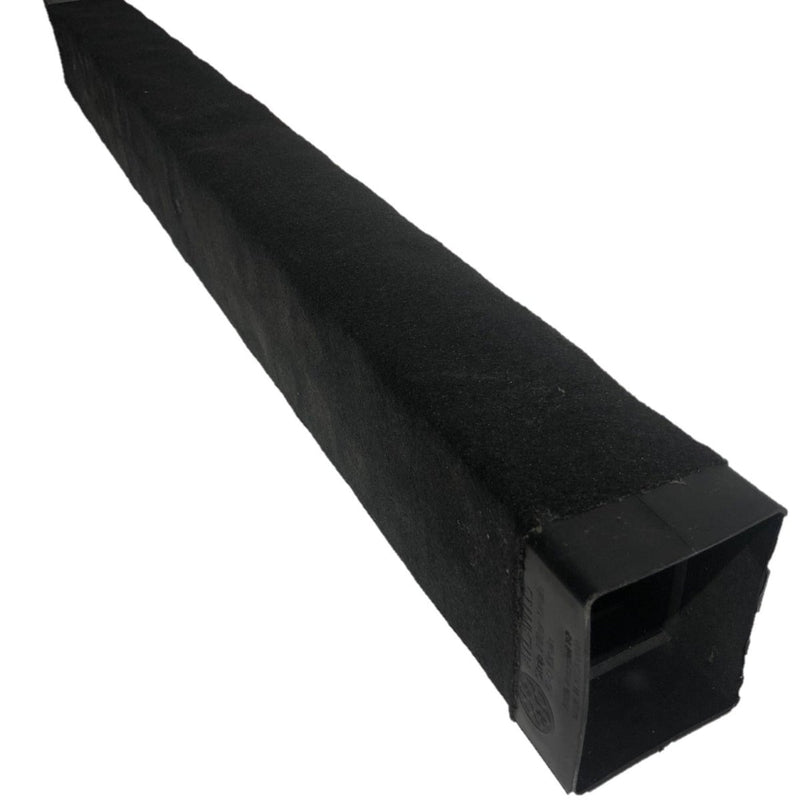

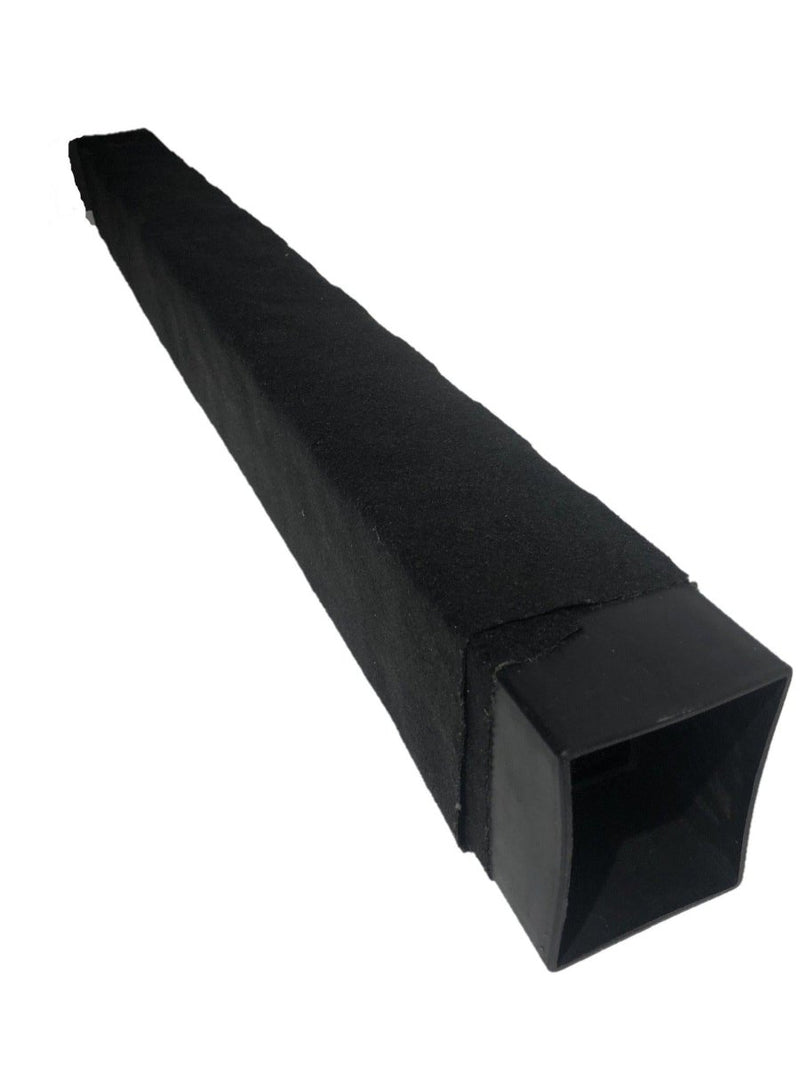

Each sections is wrapped in high-quality geotextile fabric to keep out sediments and dirt, but allow full water flow.
Applications:

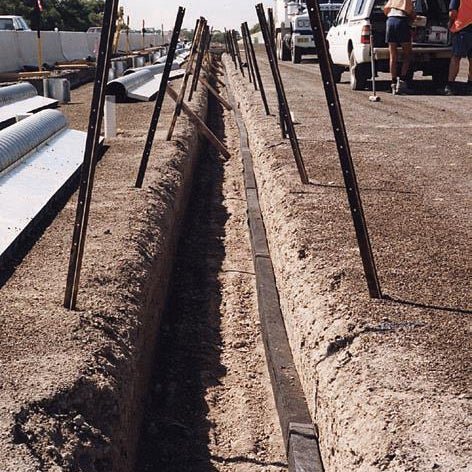

- Strip Drainage
- Retaining Walls

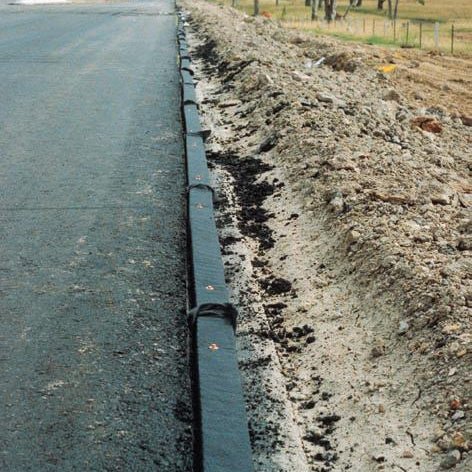

- Edge Drainage
- Sub-surface Water Dispersal
- Sports / Grass Fields
- Rain Channels
- Rooftop Gardens
- Planter Boxes
- Irrigation
Benefits:
- Quick and easy installation, reducing site access delays
- Lightweight - no cranes or lifting equipment required, can be assembled on-site by hand
- Modular - male and female end on each pipe piece to allow easy connection for large piping applications
- Maintenance free - all debris and sediment is removed by pre-filtration (wrapped in hydrophilic geotextile) and materials are resistant to molds, algae, soil-borne chemicals and bitumen
- Easily transportable (can be supplied unassembled on pallets for delivery to metro or remote areas)
If you are unsure if the Flo Pipe is right for your project, please contact our team for more information. Eco Sustainable House's friendly staff can assist with the calculations and advice to help you choose the correct products for the application.
ESH provides support only, and does not take responsibility for commercial estimating.
Specification
Measurements:
- 80mm Depth x 100mm Width x 1080mm Length (80mm overlap when connect together equating to 1 metre per unit)
- Horizontal flow rate of 80 Litres per minute
- 0.62kg per unit
- 200 units per pallet max
