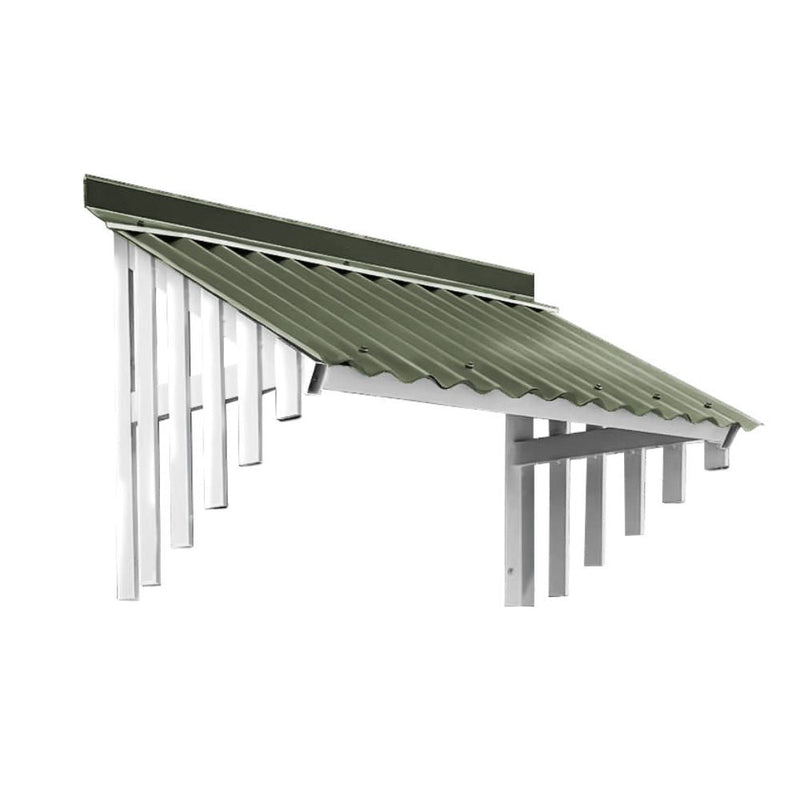

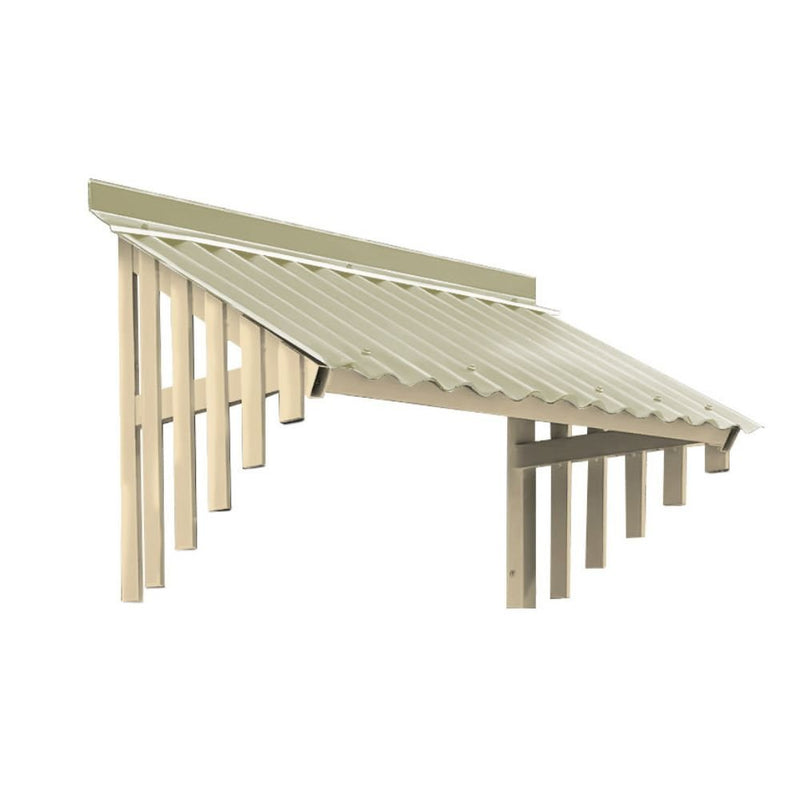

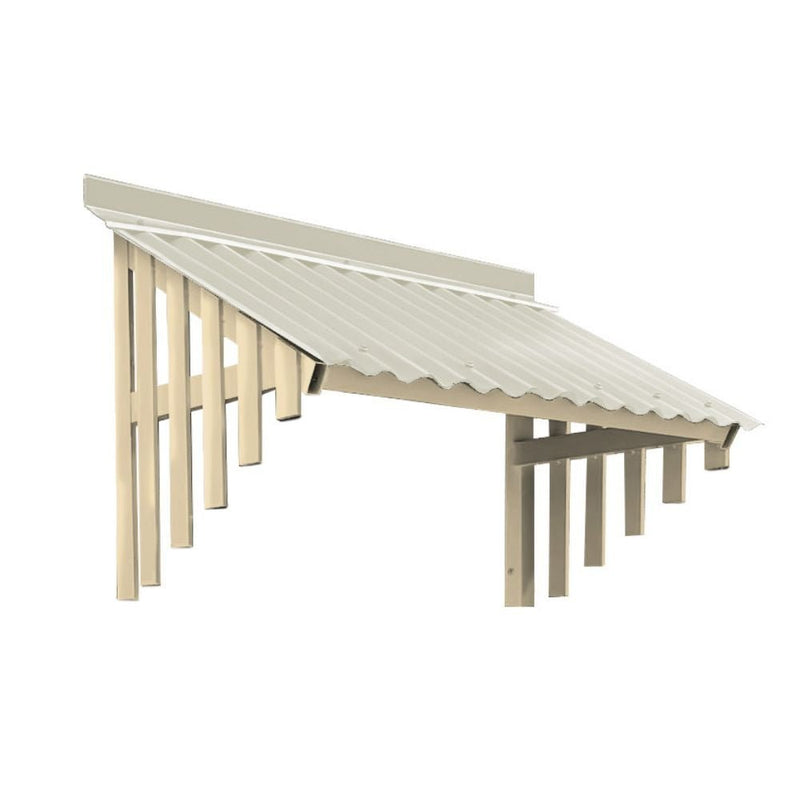

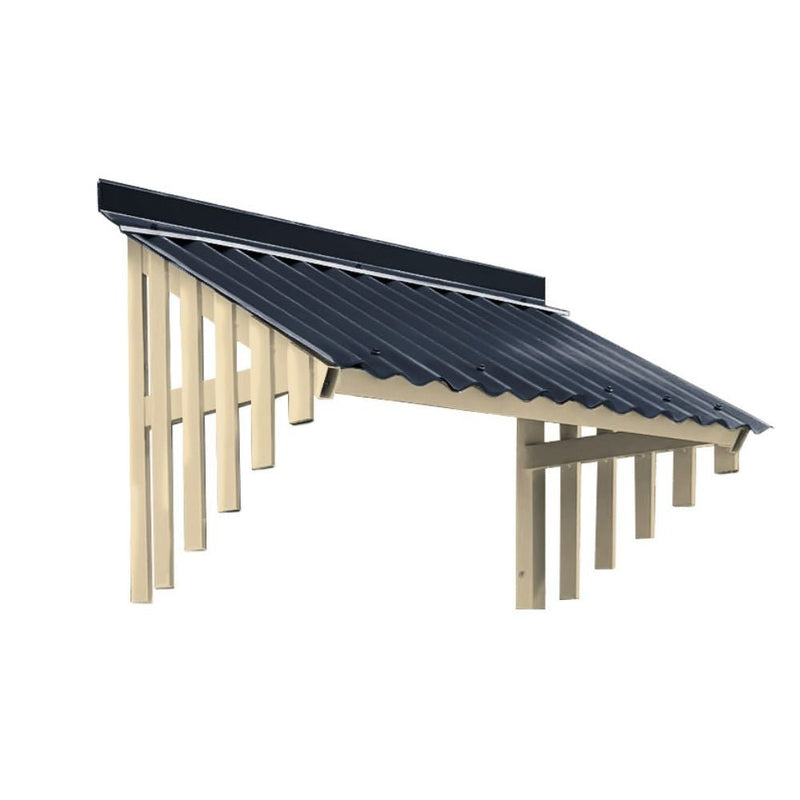

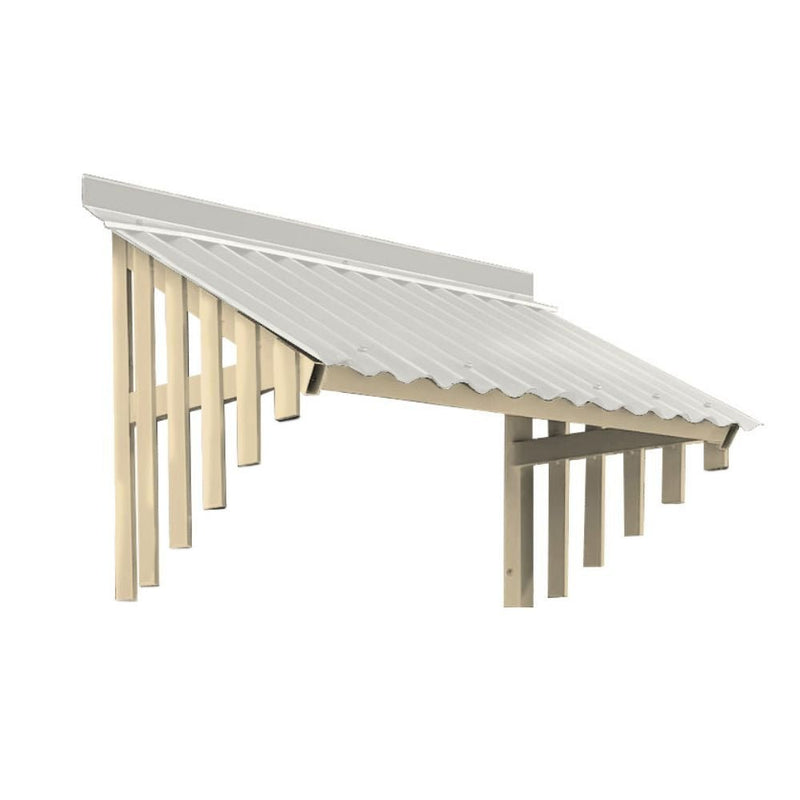

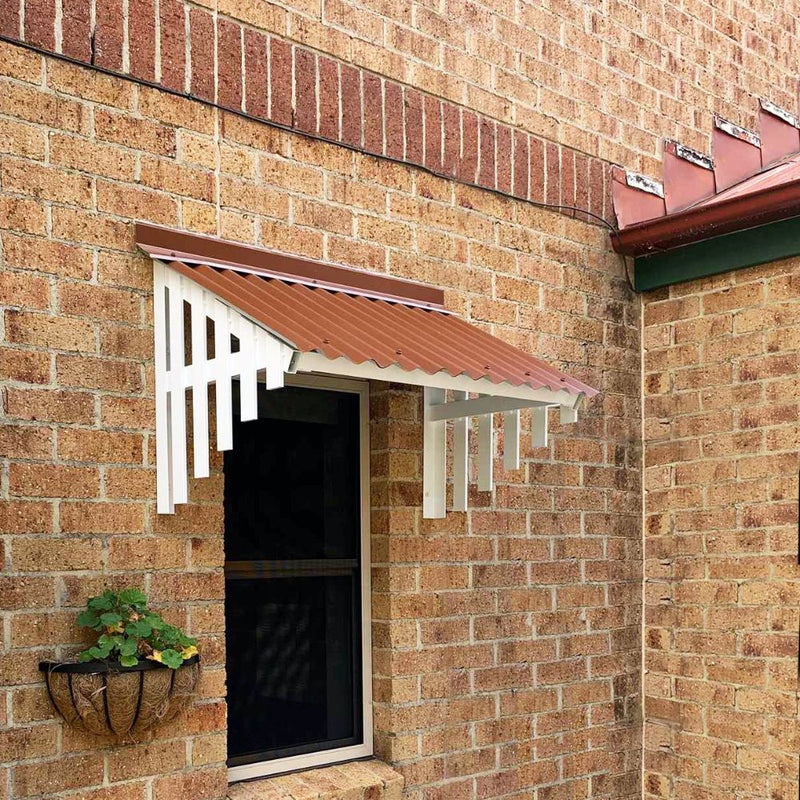

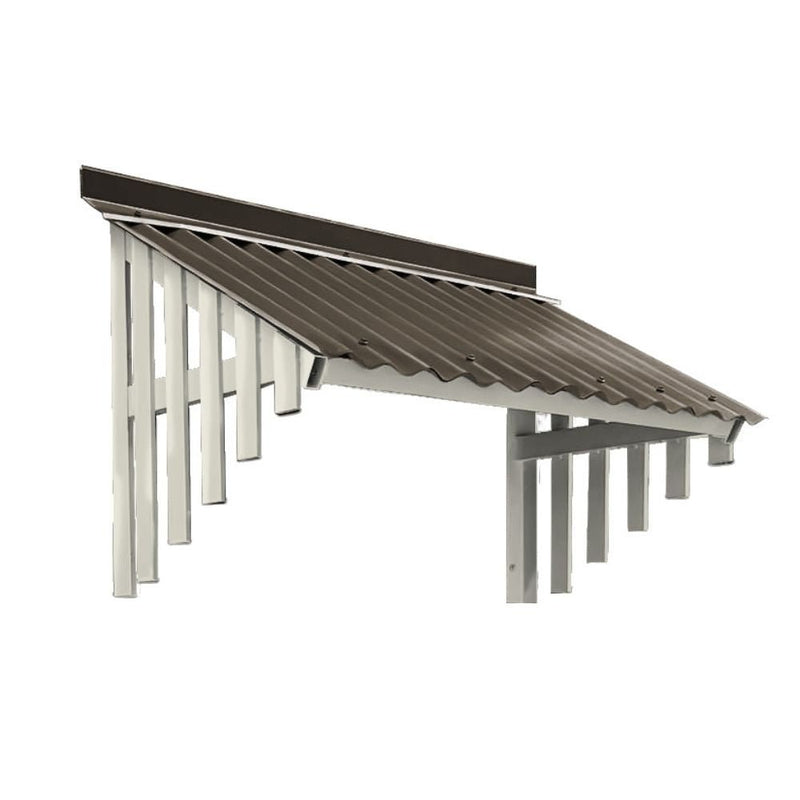

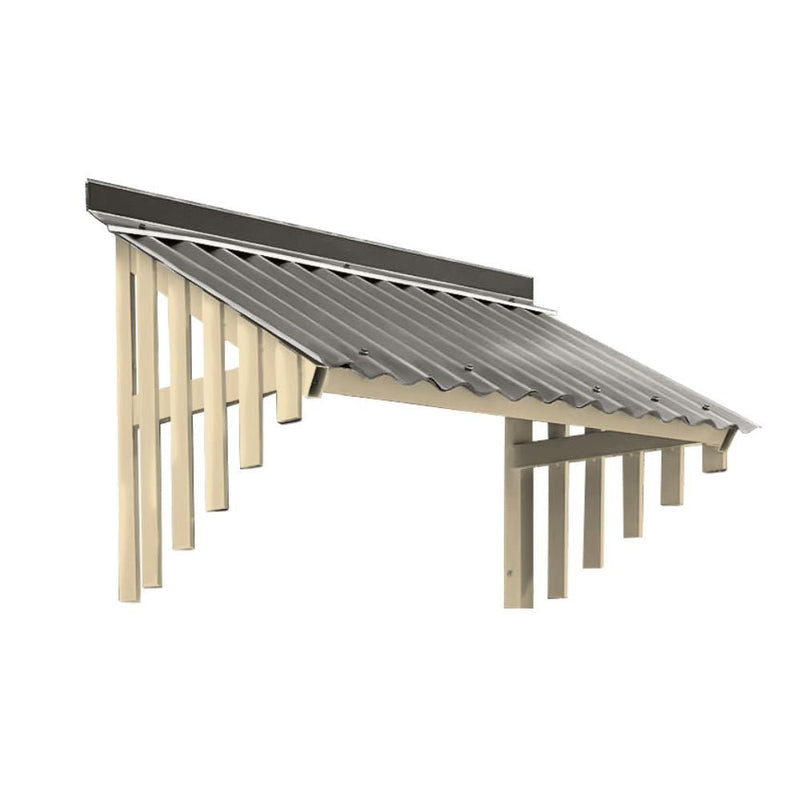

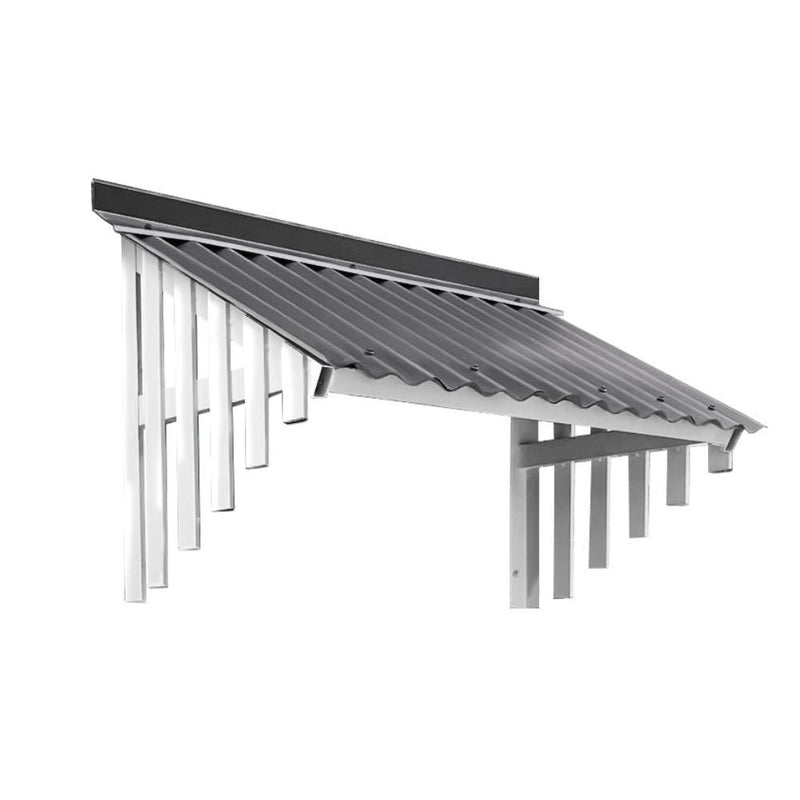

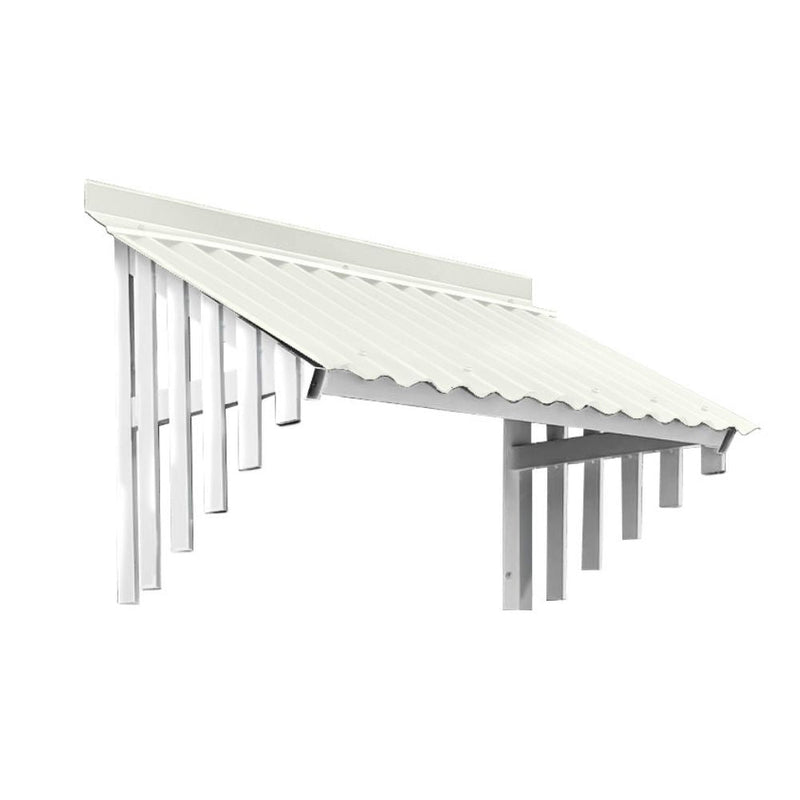

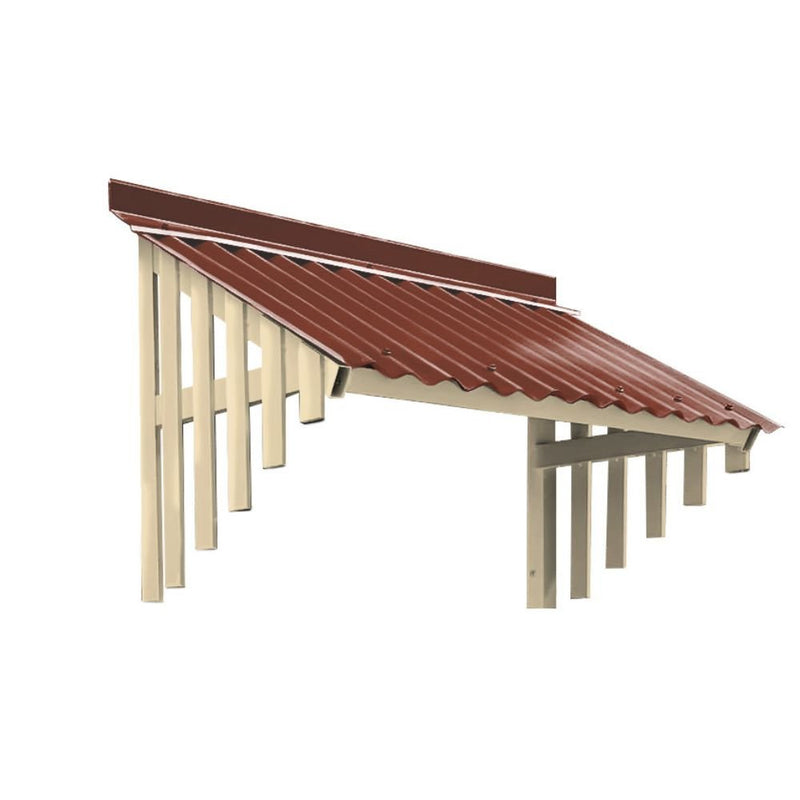

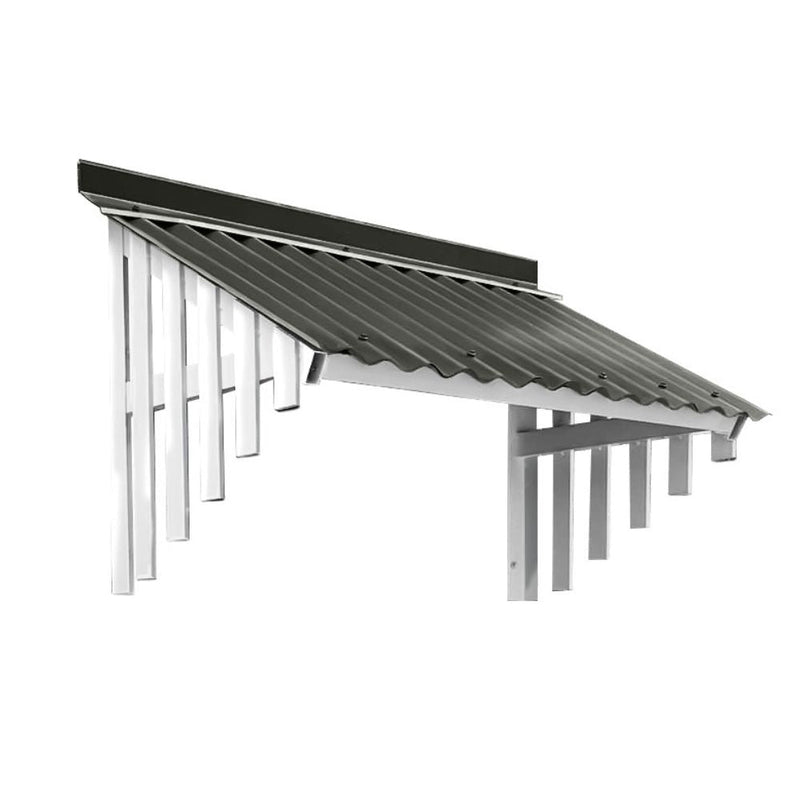

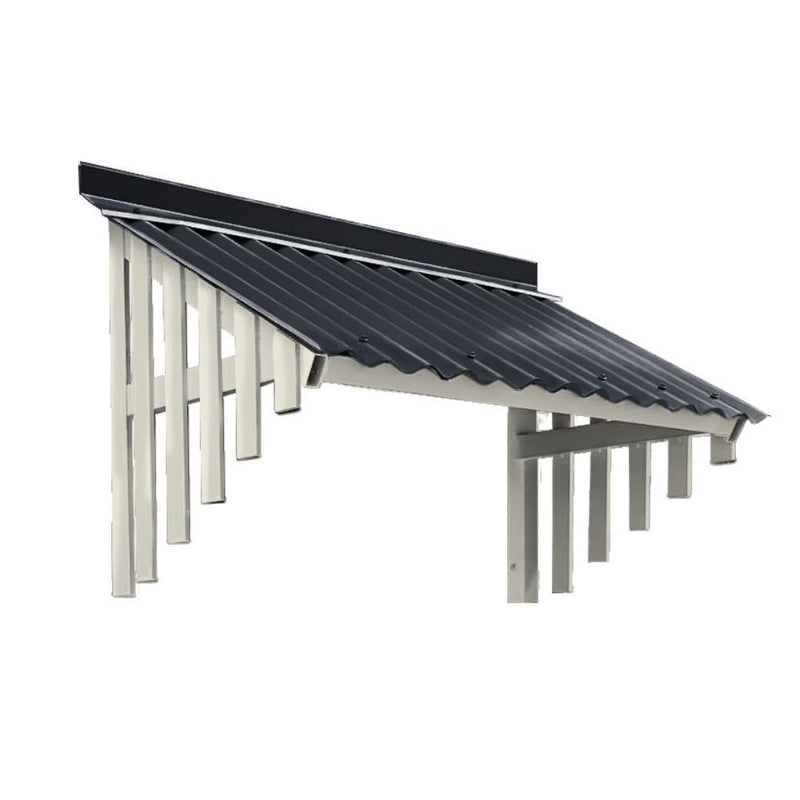

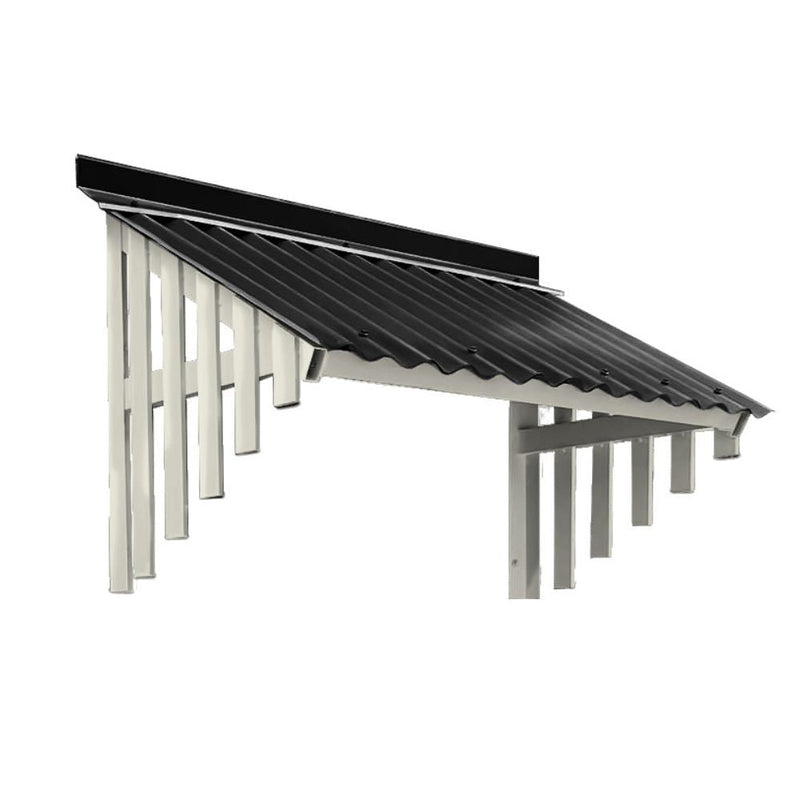

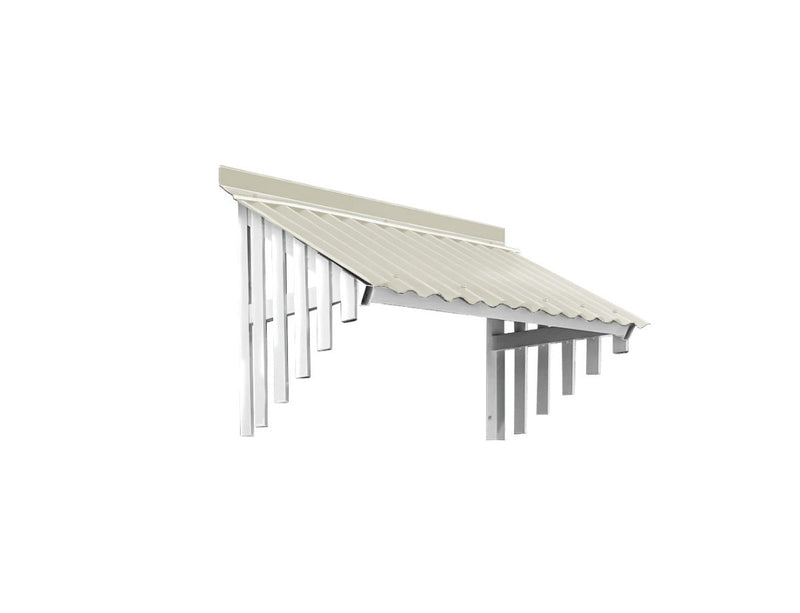

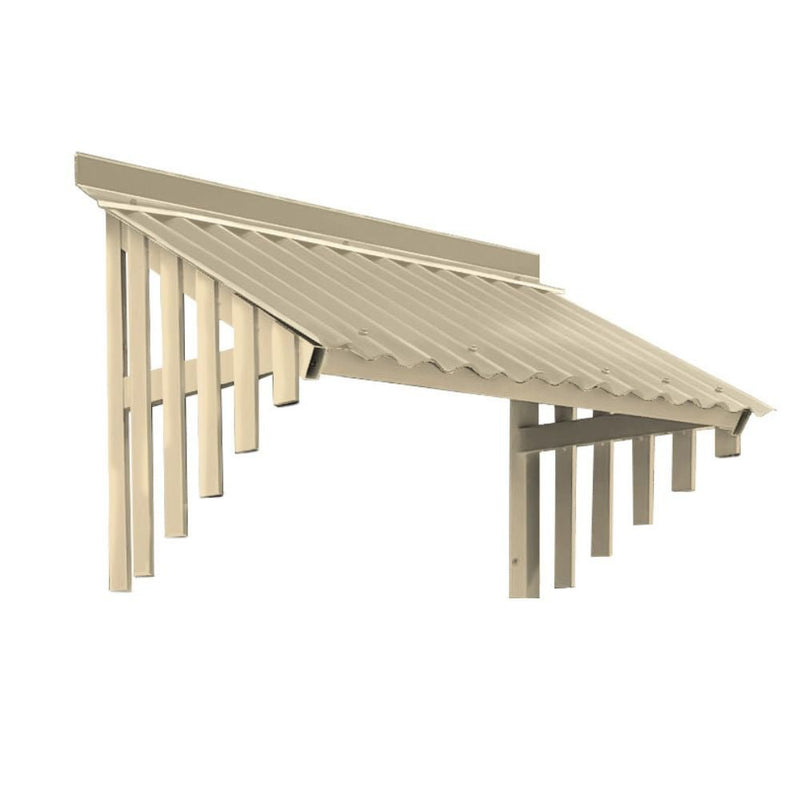

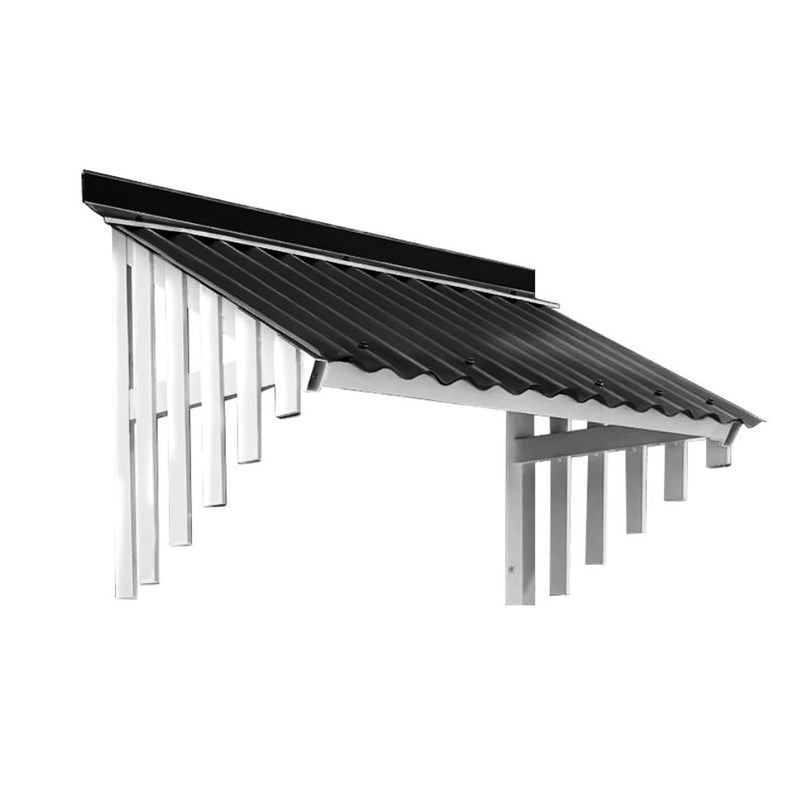

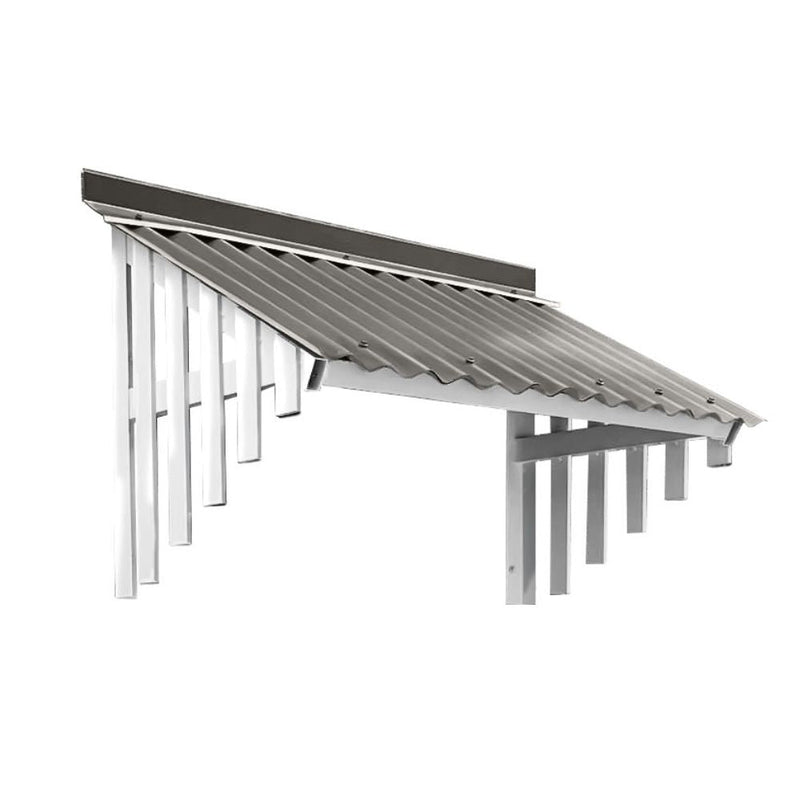

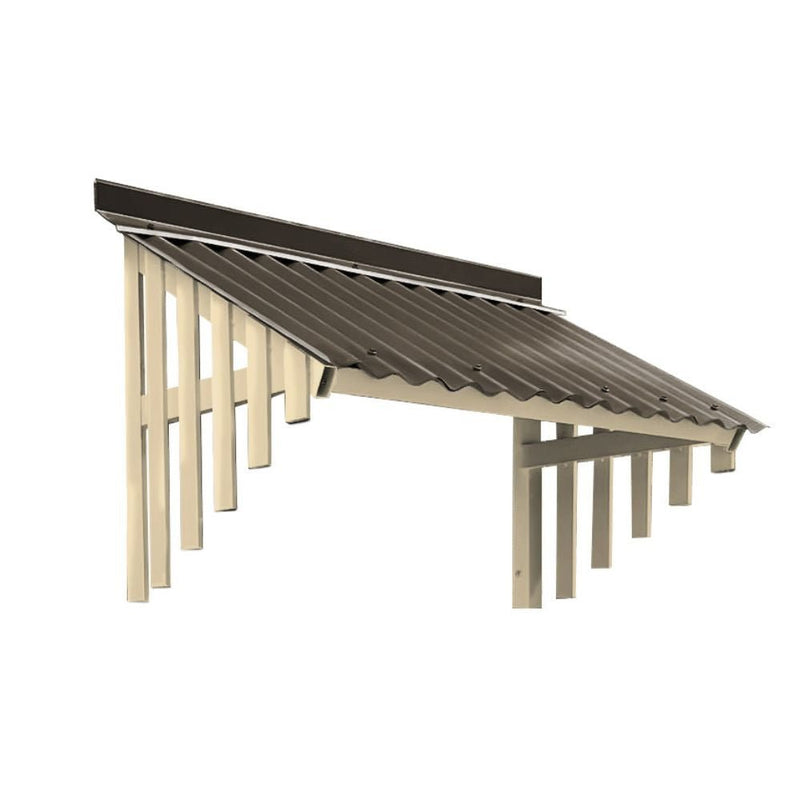

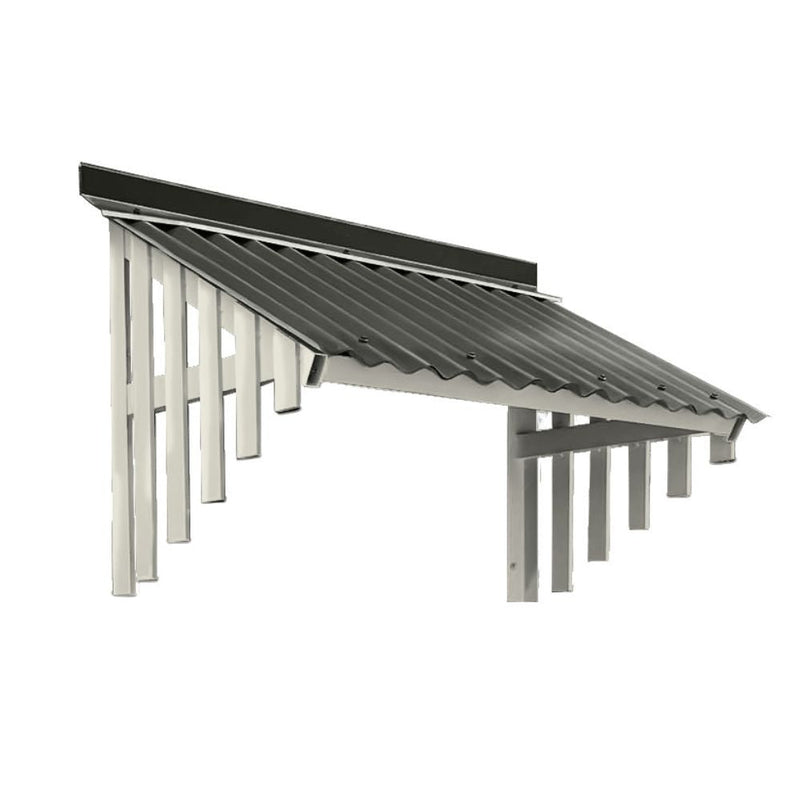

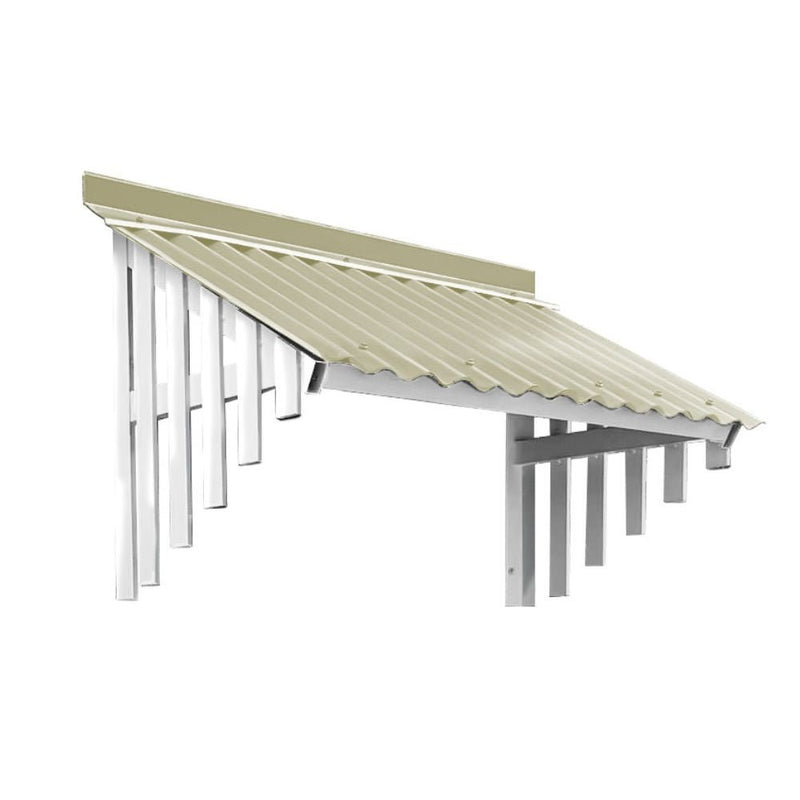

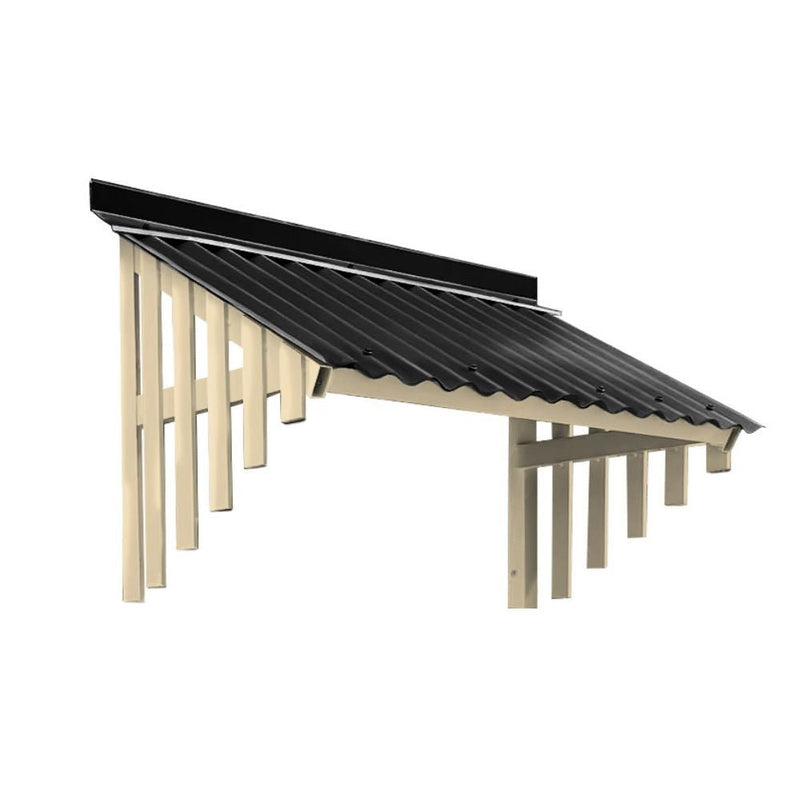

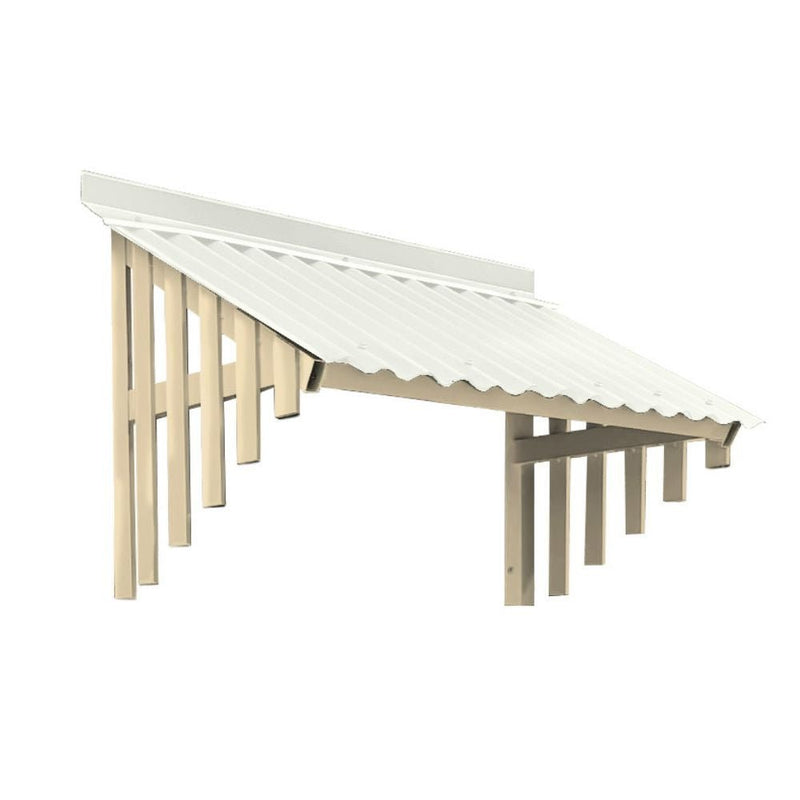

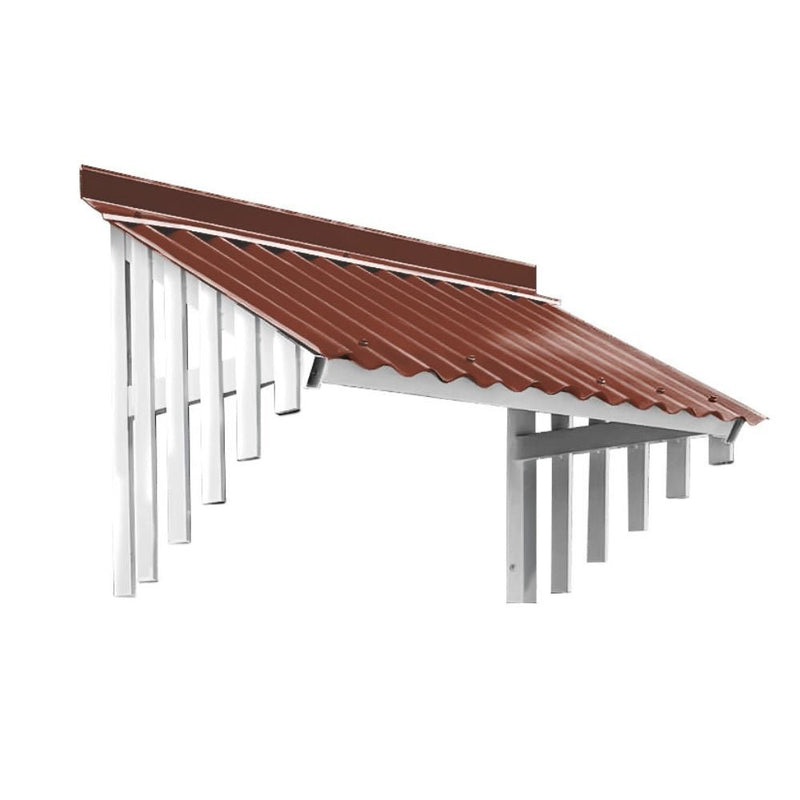

Discover the elegance and practicality of Window Hoods from Eco Sustainable House, your premier choice for adding a touch of heritage charm to your home while enhancing its energy efficiency.

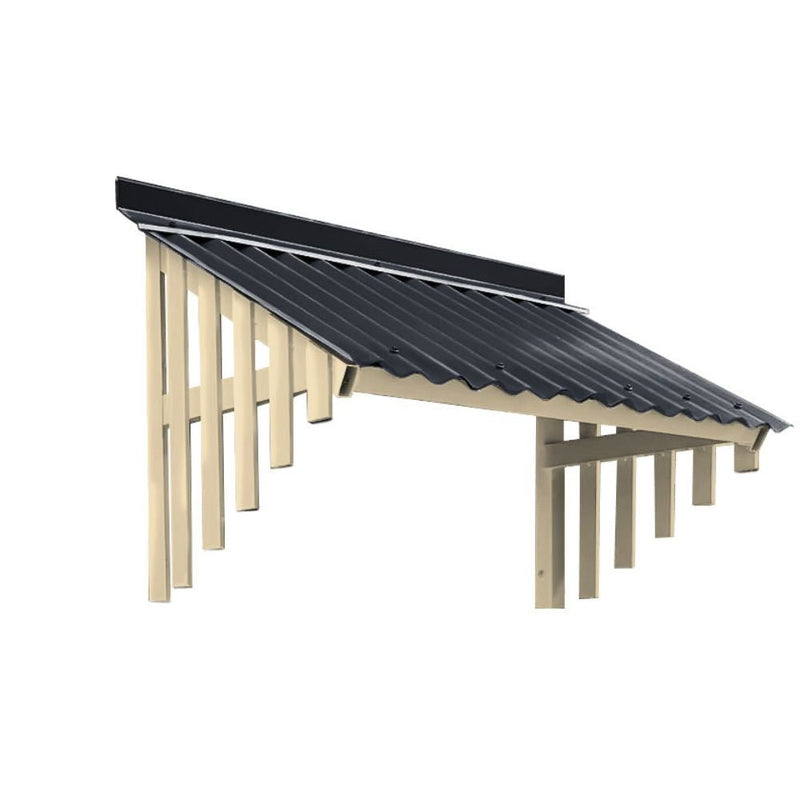

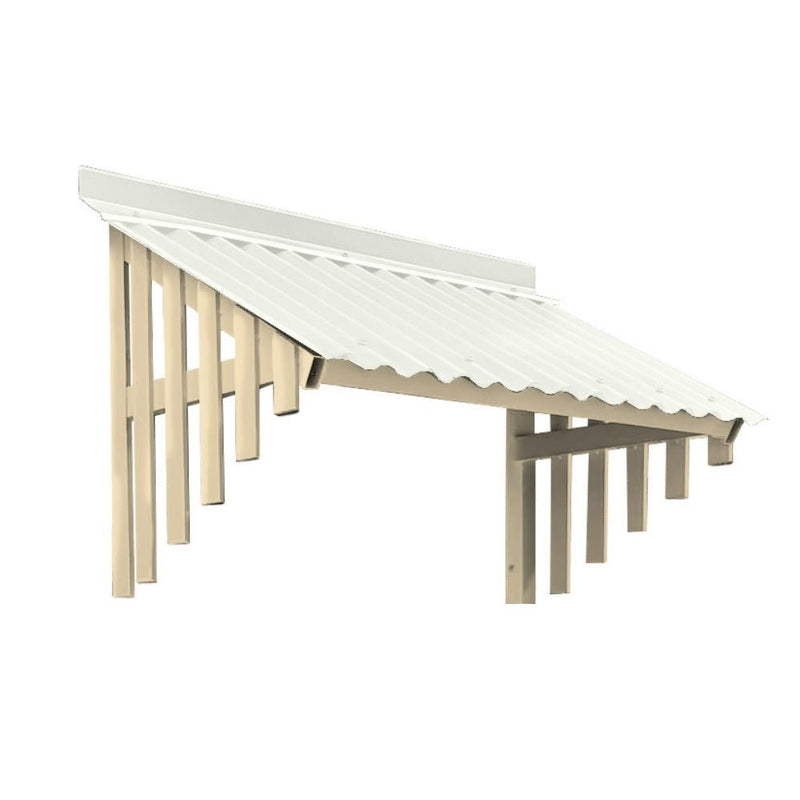

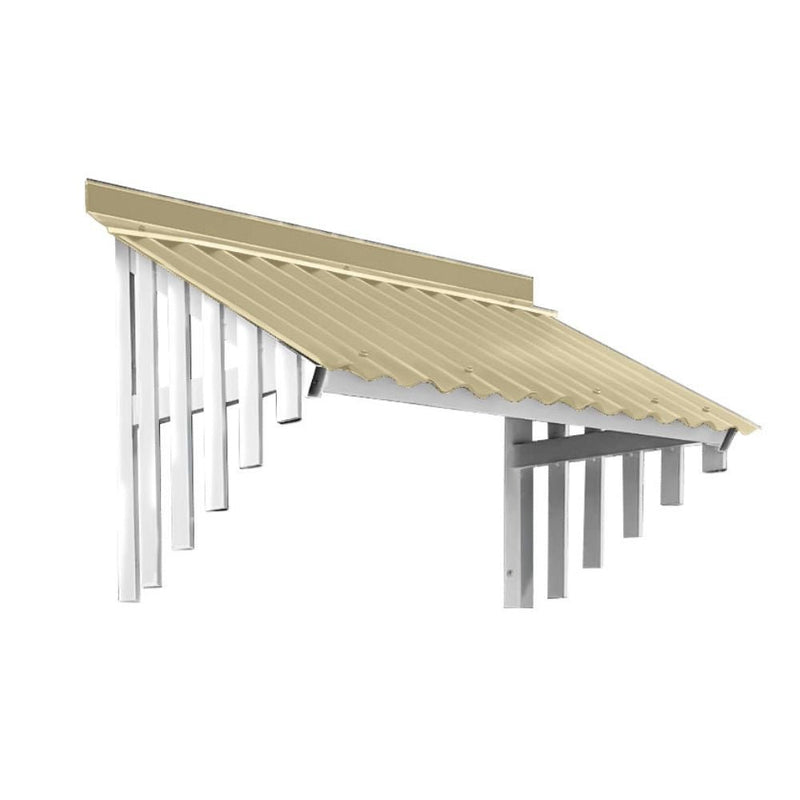

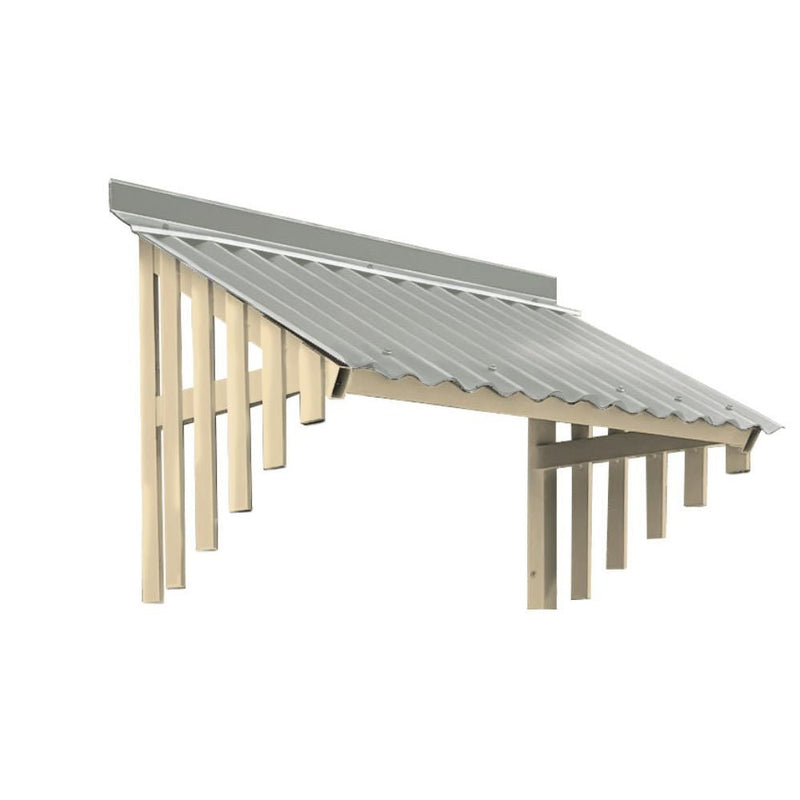

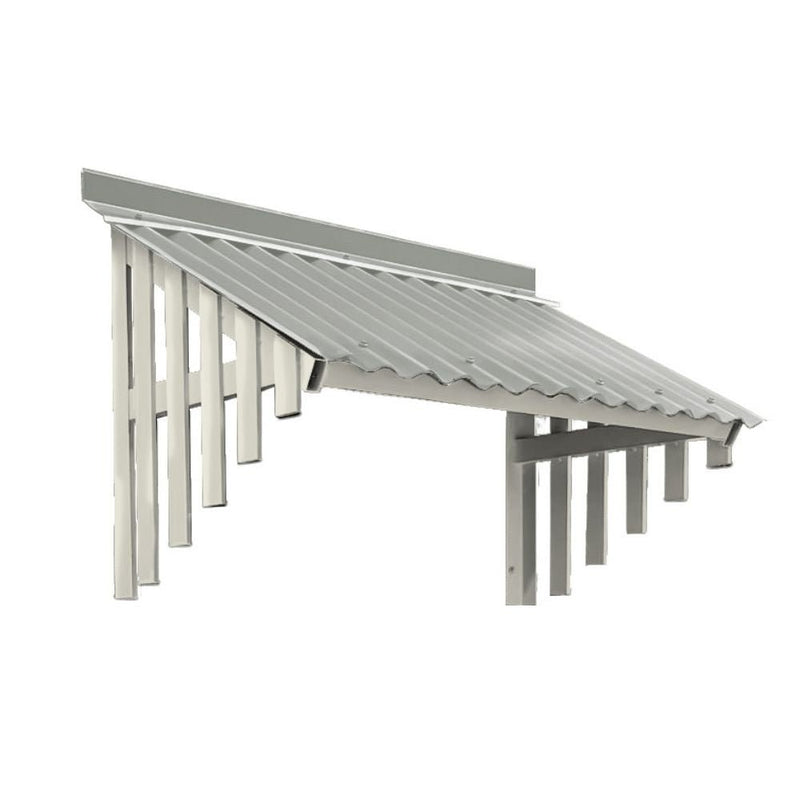

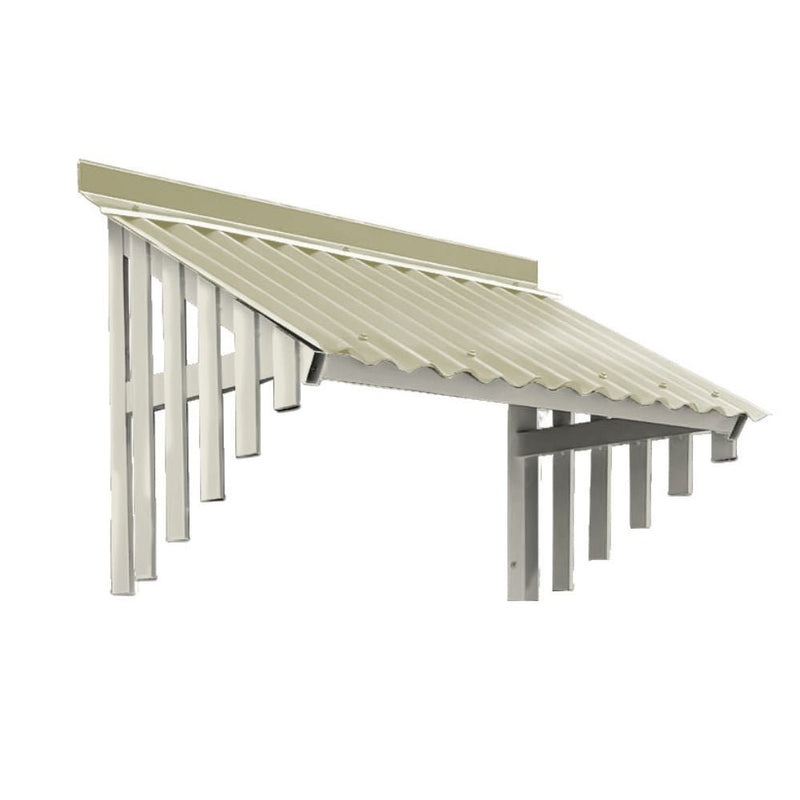

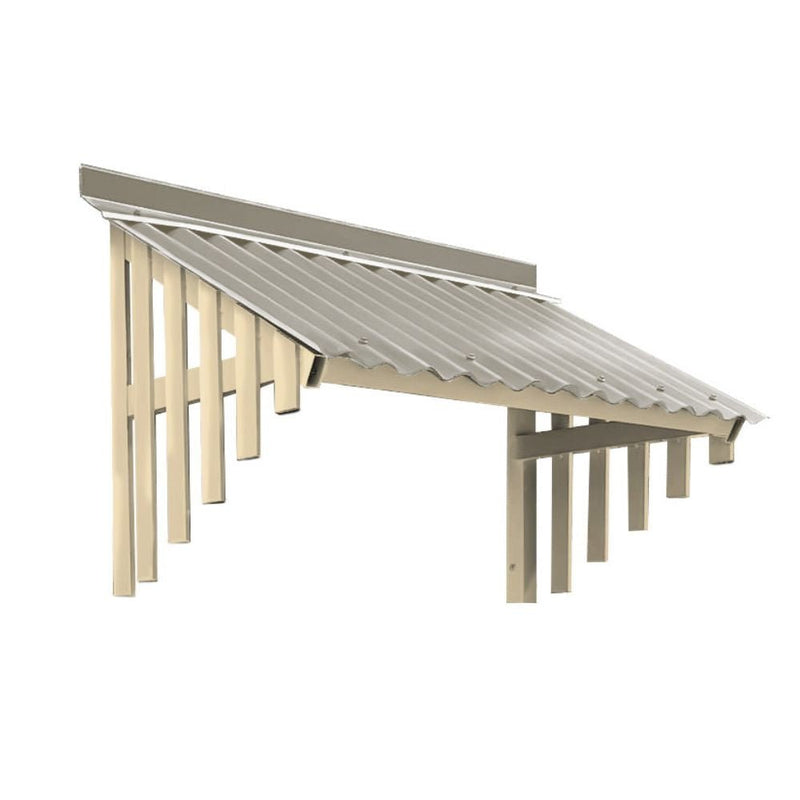

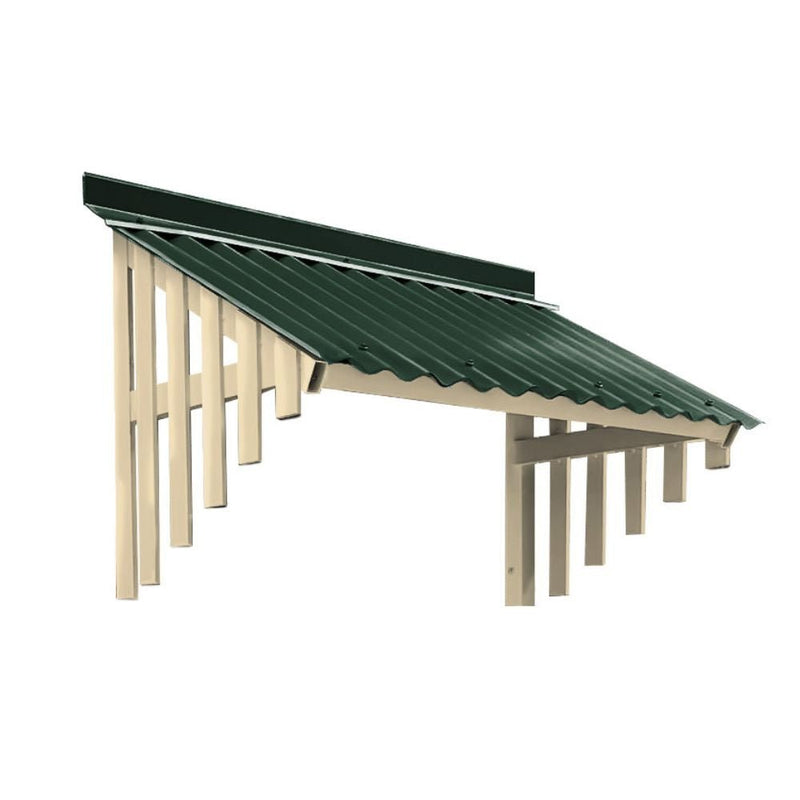

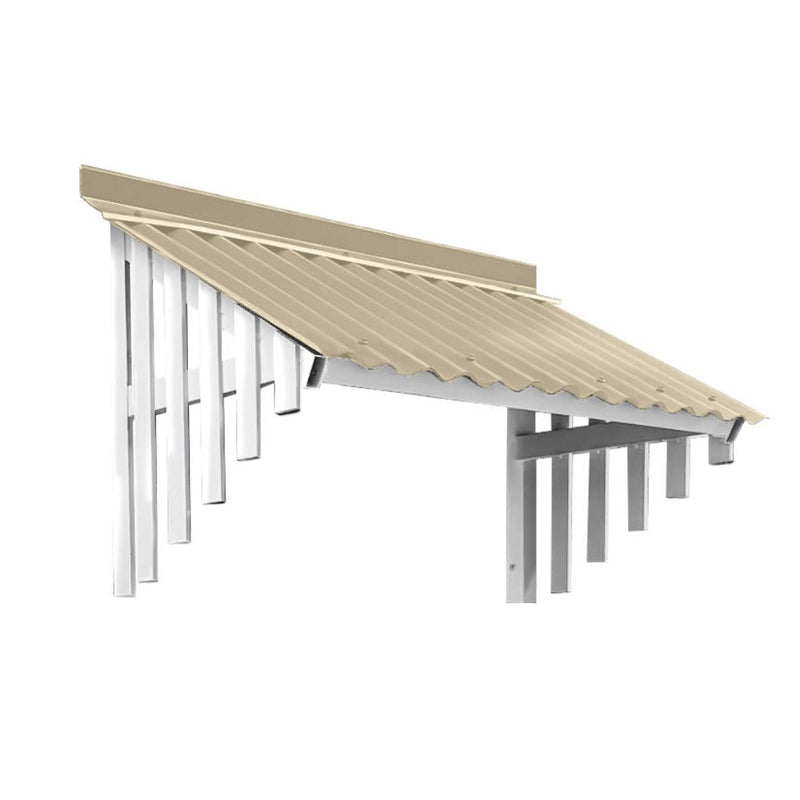

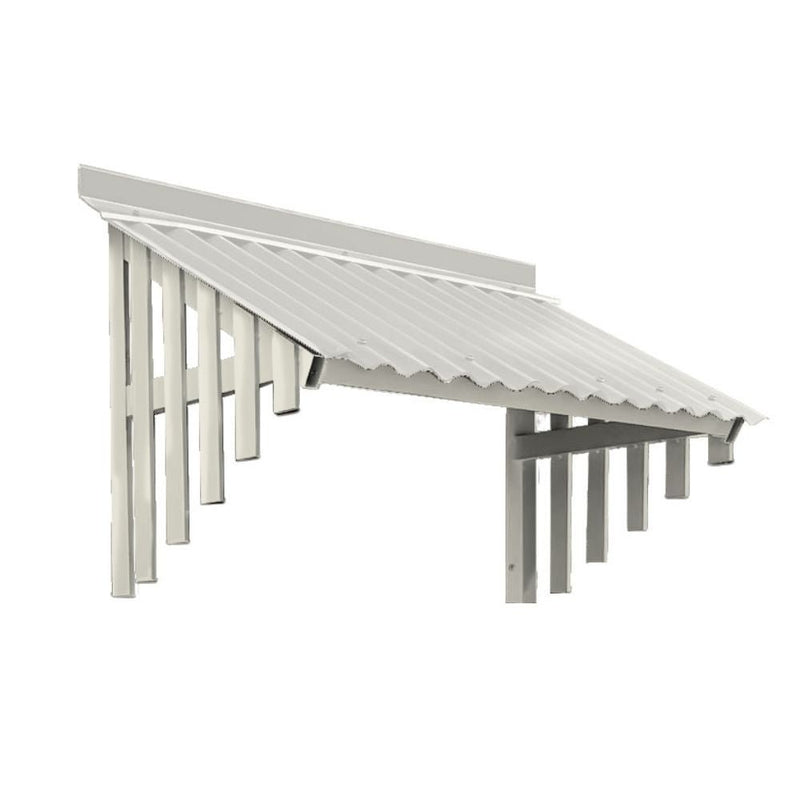

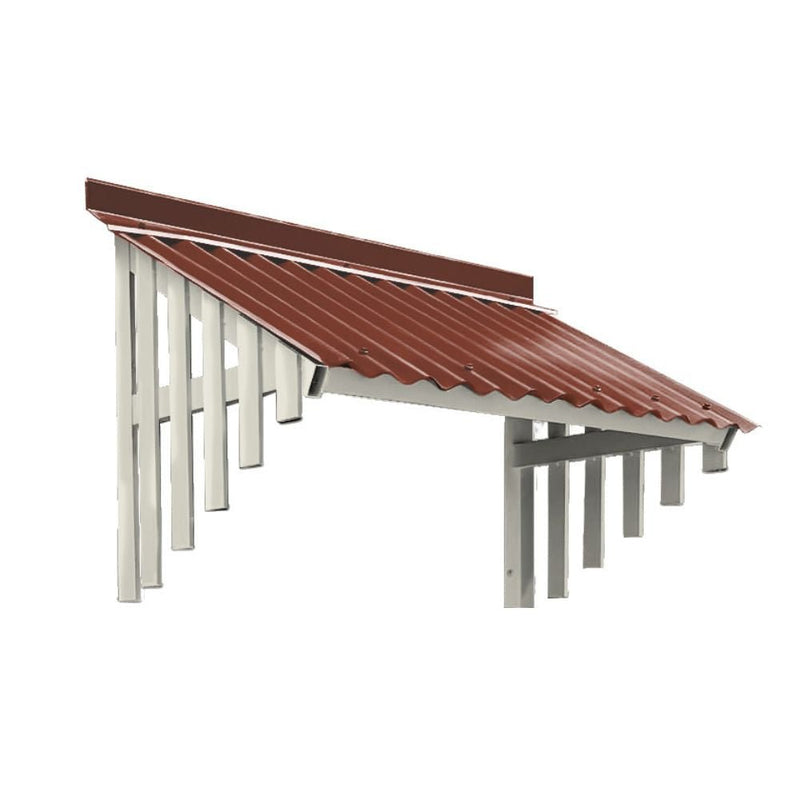

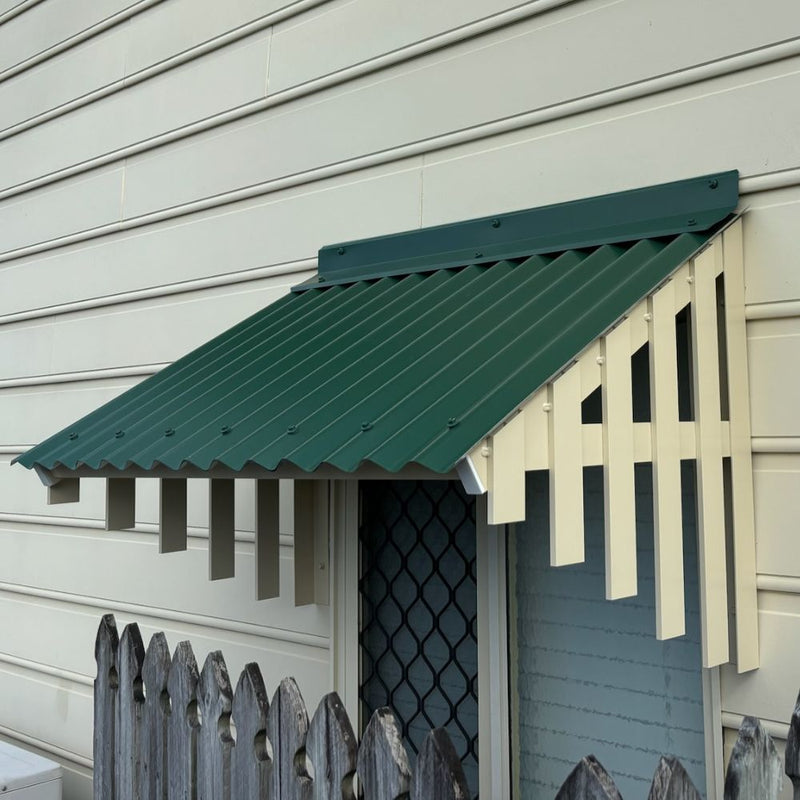

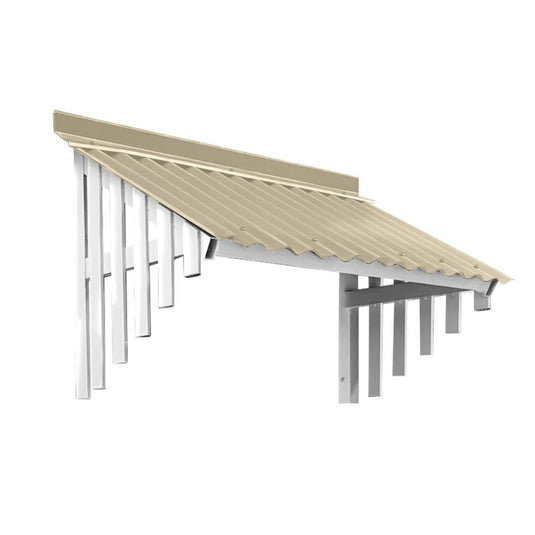

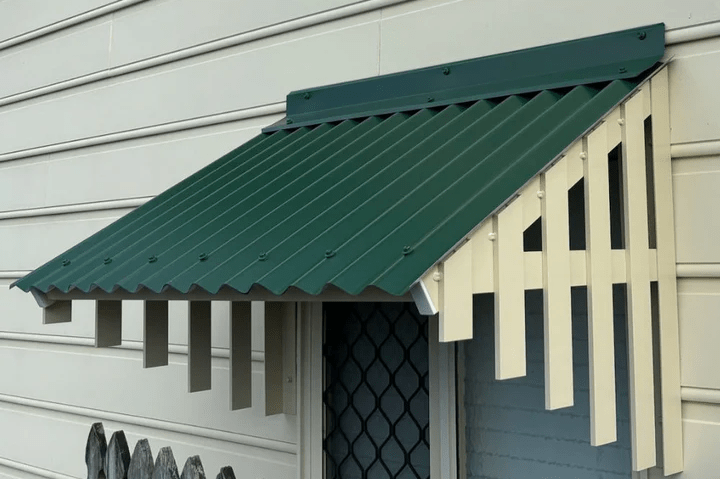

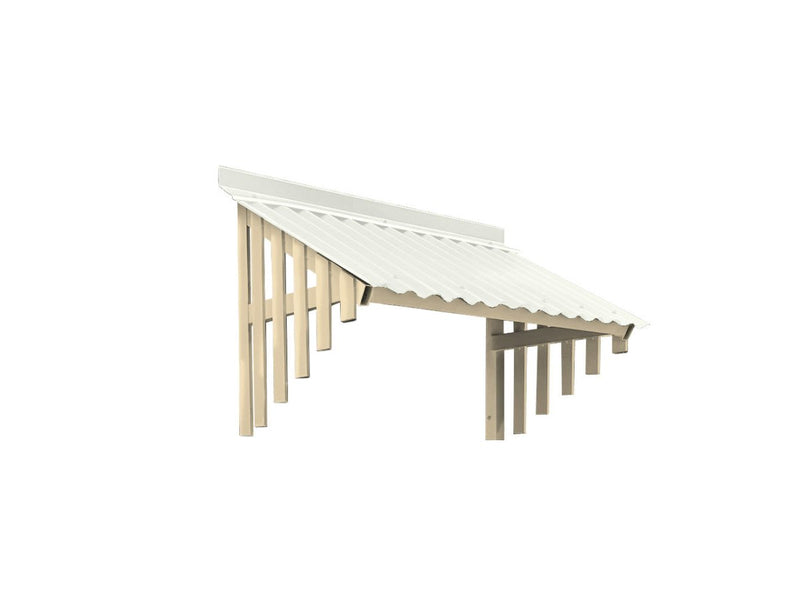

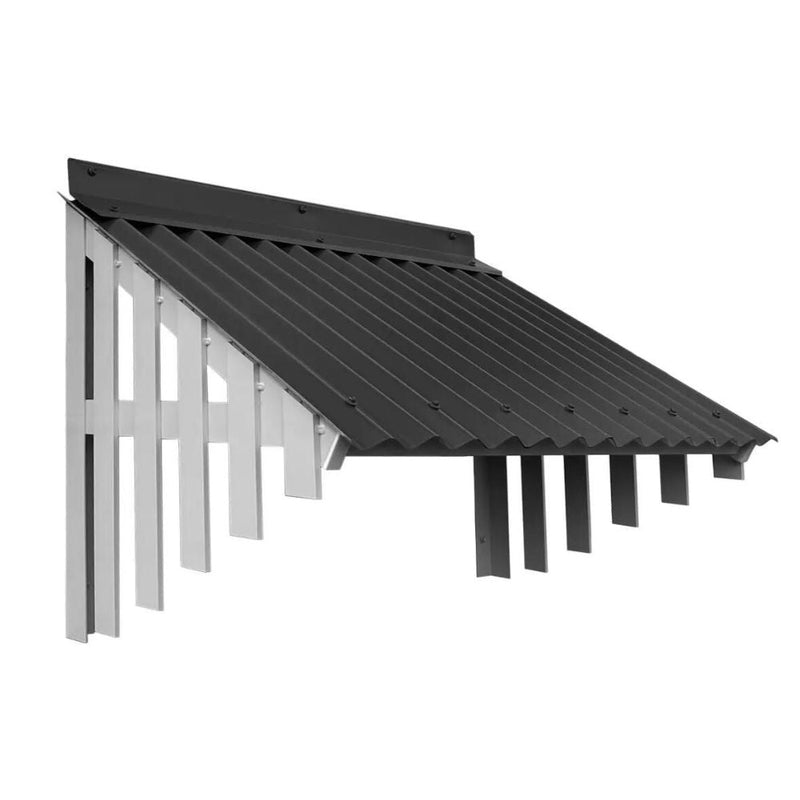

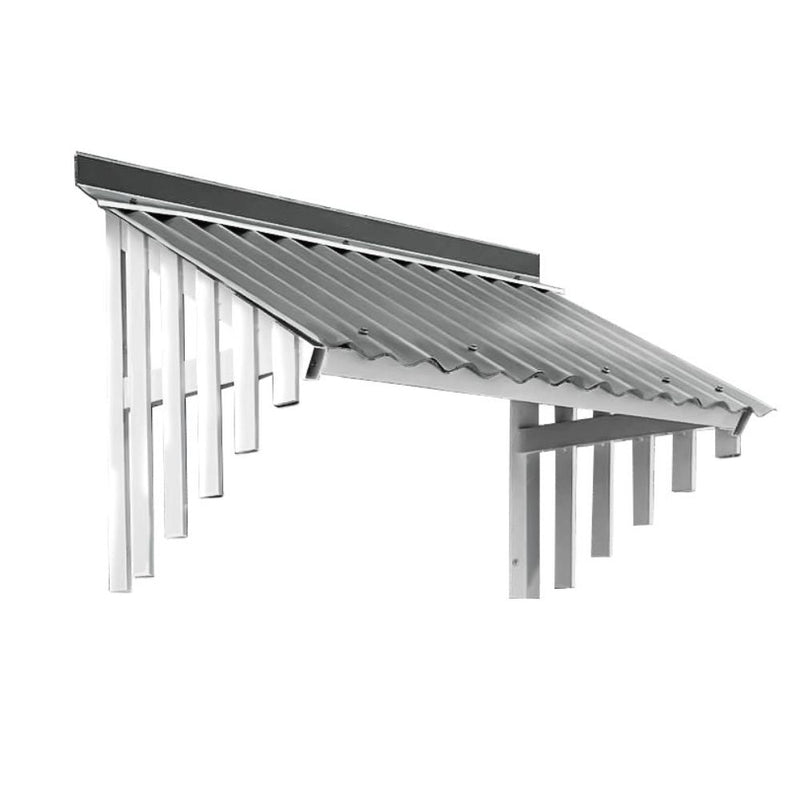

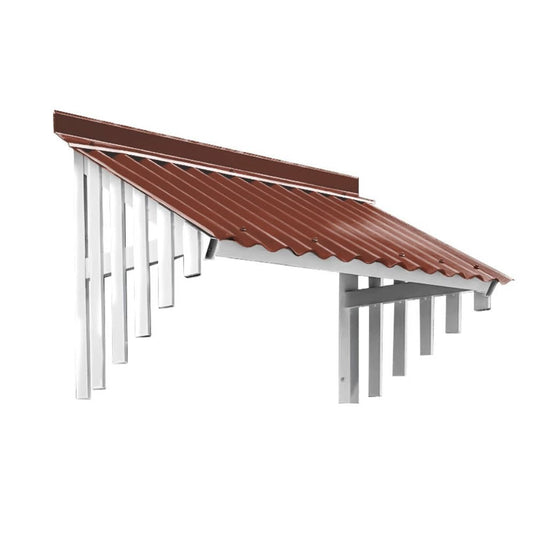

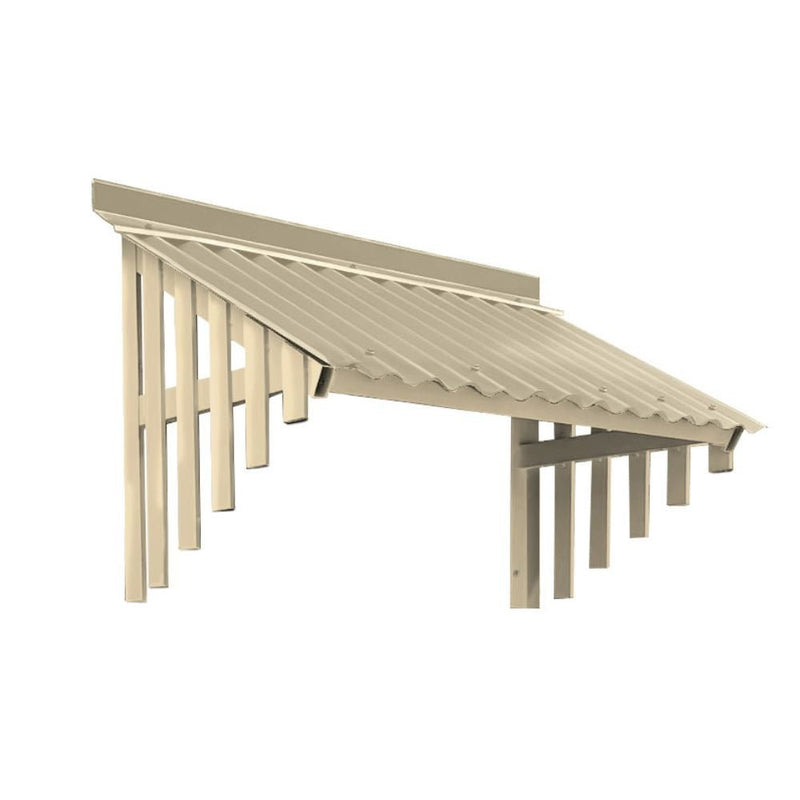

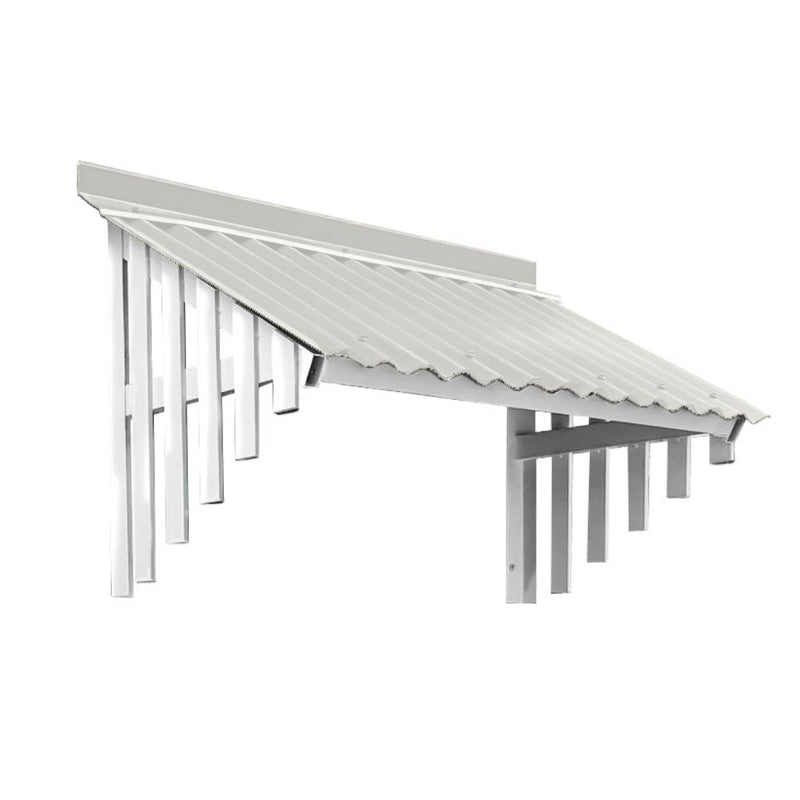

Crafted with precision, our window hoods feature robust aluminium welded brackets topped with premium COLORBOND® roofing and flashing, ensuring a perfect match for the iconic Australian colonial and Queenslander homes.

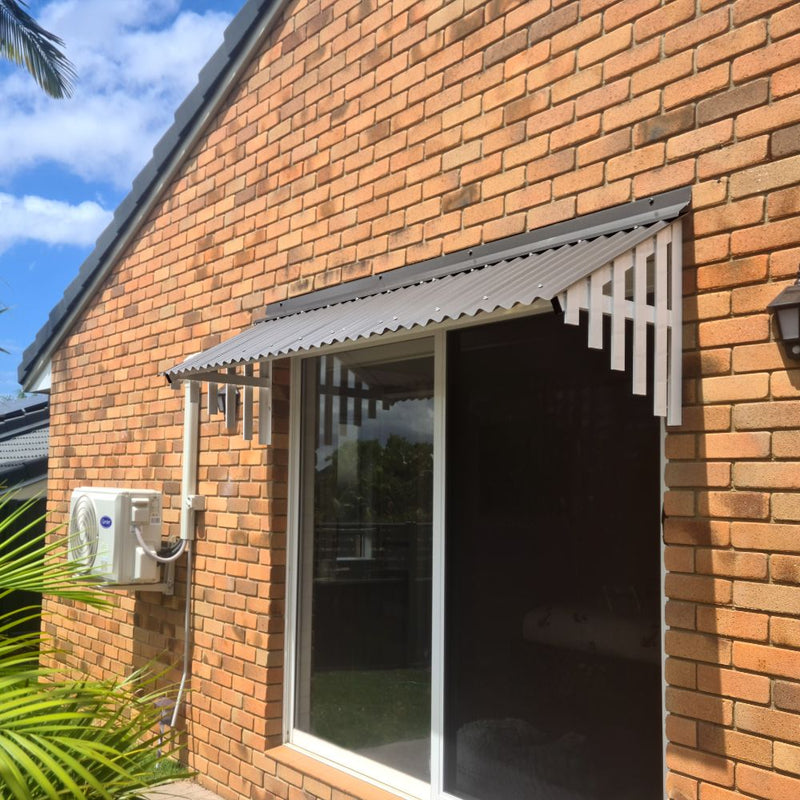

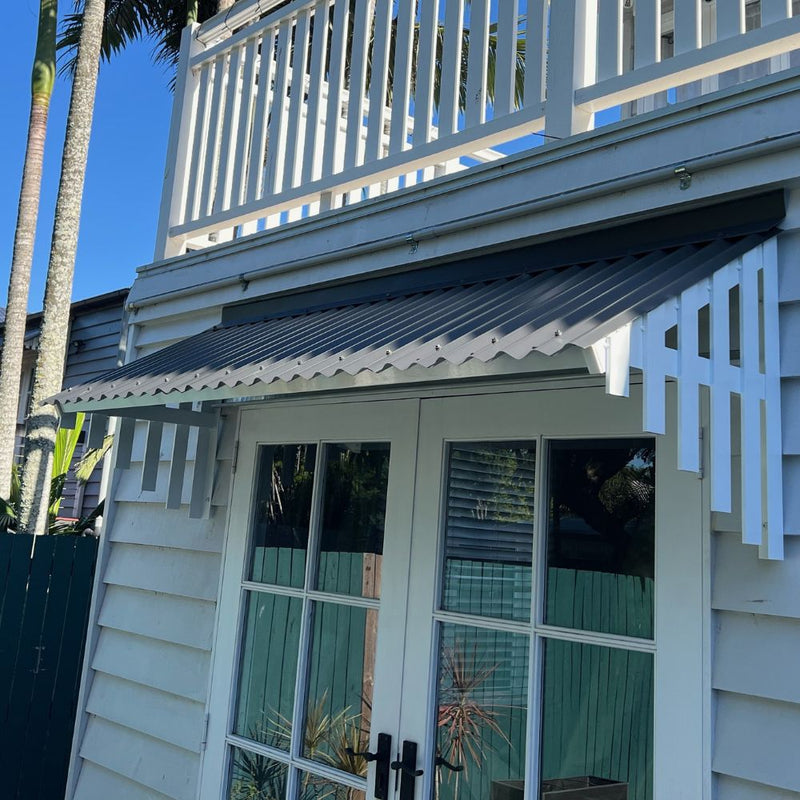

Beyond their visual appeal, our window hoods serve a vital function by significantly reducing radiant heat transfer through windows and doors, thus keeping your home cooler naturally. This not only contributes to a more comfortable living environment but also translates to substantial cost savings by reducing your reliance on artificial cooling systems.
Installation is easy to DIY. Refer to installation brochure here.
Product Care and maintenance is even easier. See here.
Specifications:
- Hood roof pitch is 30 degrees.
- Colorbond Custom Orb sheet length is 700mm.
|
ITEM |
DIMENSIONS |
FINISH |
MATERIAL |
QTY |
|---|---|---|---|---|
|
Brackets |
650Hx567W |
Powder Coat |
Aluminium 6060 T5 |
1 Pair |
|
Battens |
40x40x2 SQ Box |
Powder Coat |
Aluminium 6060 T5 |
2
|
|
Angles with 3 Holes |
40x40x3 |
Powder Coat |
Aluminium 6060 T5 |
4
|
|
Custom Orb Sheets |
700Lx762W |
COLORBOND® |
COLORBOND® Steel |
Round up width/762
|
|
Flashing 3 Fold |
82x52 x panel width |
COLORBOND® |
COLORBOND® Steel |
1
|
| Caps | 50x25 | Black | Nylon | 2 |
PLEASE NOTE IN YOUR ORDER COMMENTS WHAT WALL MATERIAL YOU ARE FIXING INTO. EG. TIMBER OR MASONRY SO WE CAN SEND CORRECT FIXING SCREWS
|
FIXINGS |
PURPOSE |
QTY |
|---|---|---|
|
T17-HX-14G-10x40mm |
Timber Screw Hex 14G- 10 x 40mm - Fixing Colonial Bracket to wall |
4 |
|
MQ8x40 - Mungo 8x40 |
Use with Timber Screws if installing in masonry |
4 |
|
SD-HX-10-16x16, seal |
Self Drilling Hex Screw 10-16x16 with seal - Fixing rails to side Brackets |
12 |
|
SD-HX-12-14x35, seal |
Fixing Custom Orb to brackets & Battens - 5 across each batten |
10 per sheet |
|
T17-HX-14G-10x40mm |
Timber Screw Hex 14G- 10 x 40mm - Flashing to wall |
Every 4th rib
|
